Description
1. Product Introduction

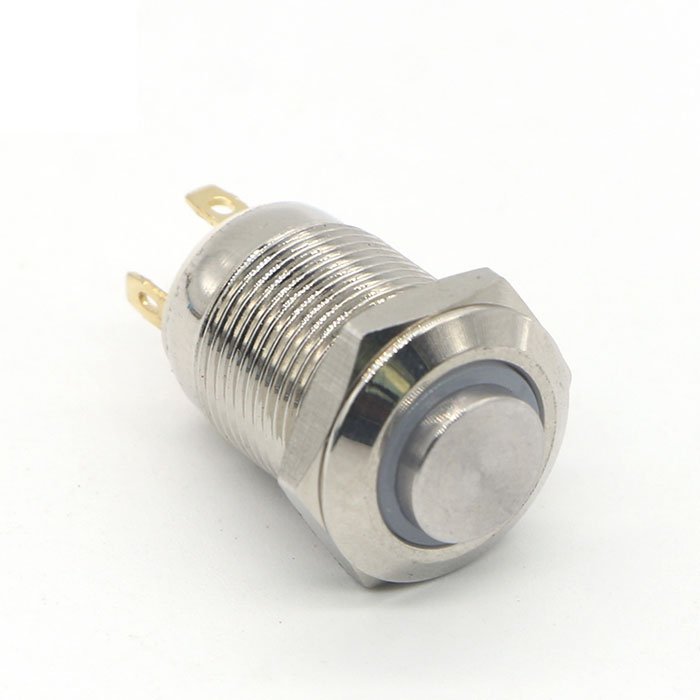

12mm momentary switch Waterproof stainless steel metal 1.5mm raised round button switch and ring rubber ring, high-quality metal material, IP65 waterproof protection, can be used in humid or dusty environments.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications

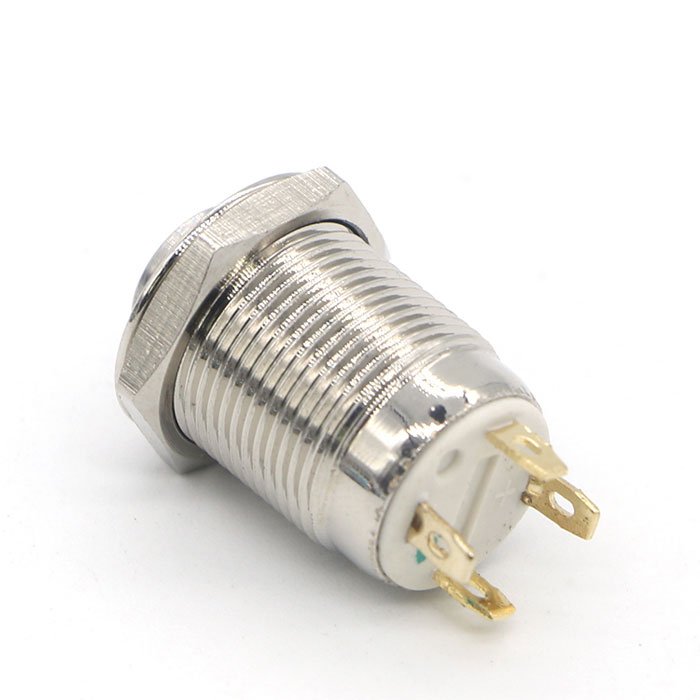

12mm momentary switch Momentary button switch 12 mm mounting hole size. The 1.5mm raised button is easy to operate. With irregular 4-pin solder terminals, easy to install. Aluminum alloy shell, sturdy and durable, feel good. Durability: 50,000 cycles long life. Stainless steel button switch function: press to start, press again to close, easy to operate.
4. Product Details
Our products 12mm momentary switch have strict specifications, easy-to-operate interfaces, material protection and optimized service life. This 12V button switch is suitable for almost all electric vehicle motor starting and power starting equipment, and can also be used as an access control button to replace electrical equipment and household appliances.
