Description
1. Product Introduction

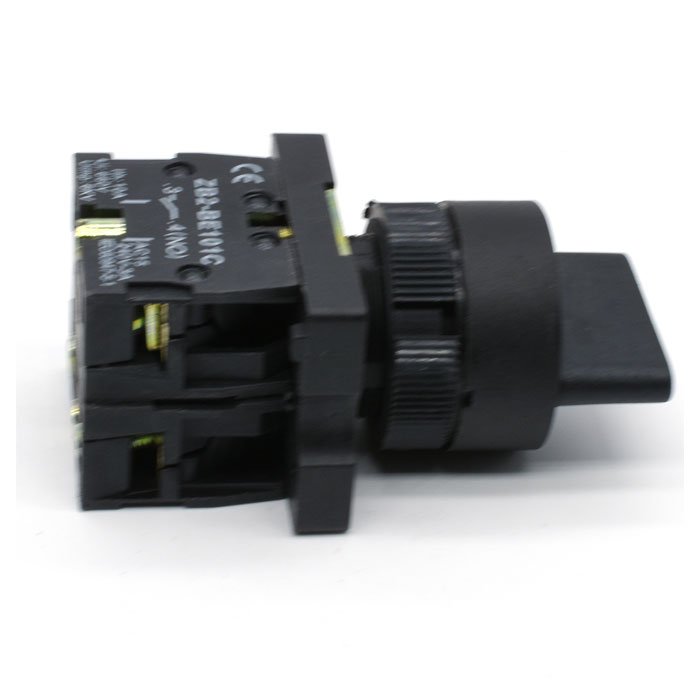

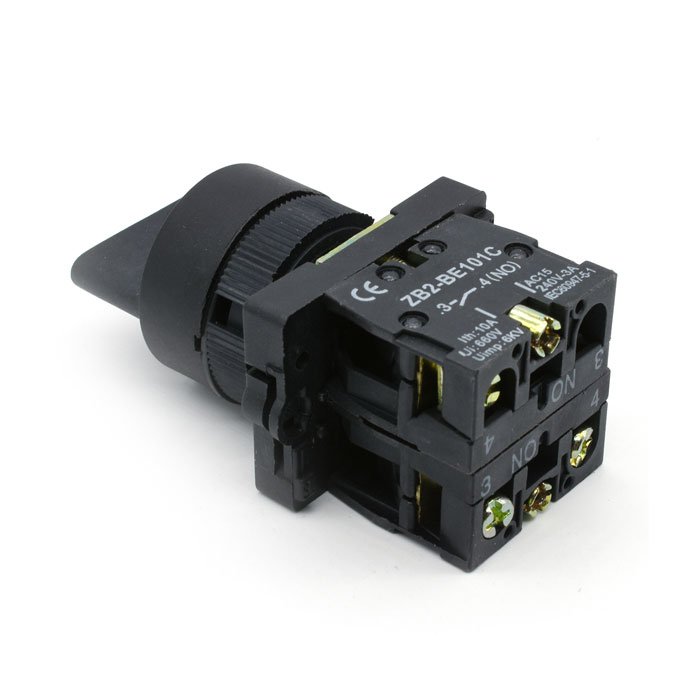

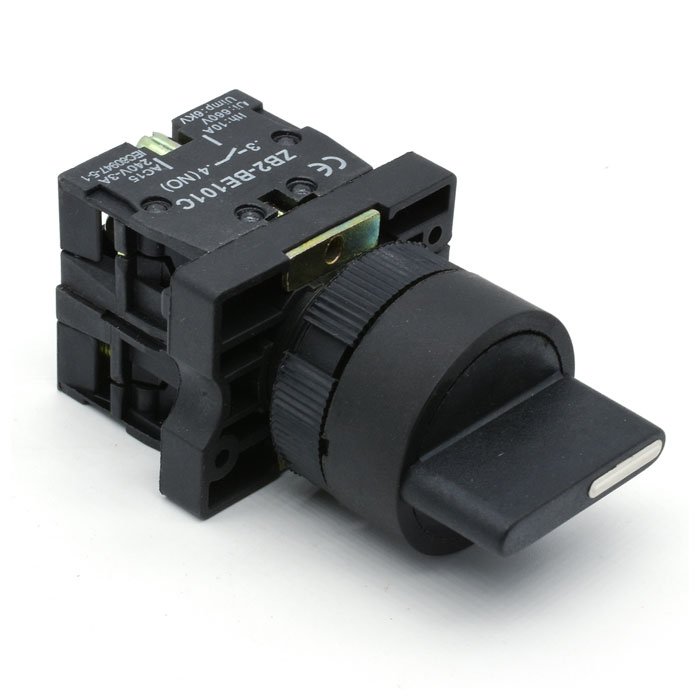

– 3 position rotary selector push button switch.
– The switches are structured compactly and operated quickly and gently.
– Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
2.Product Parameter (Specification)
| Rated insulation voltage | AC 600V (50/60Hz) | |
| Convectional current | 10A | |
| Insulation resistance | ≥50MΩ | |
| Contact resistance | ≤25MinΩ | |
| Mechanical life | 100*104(Pushbutton) | 50*104(Selector switch/Key switches) |
| Electrical life | 500*104(Pushbutton) | 250*104(Selector switch/Key switches) |
1.Surrounding temperature : -25℃~+55℃;
2.Air relative humidity : ≤85%;
3.It can be normally work under following condition : Vibration frequency is 2-80Hz and acceleration speed is 0.7g/h;
4.Pollution grade III,installation sort is III, protection grade is up to IP65;
5.Altitude : ≤2000m.
3.Product features and applications
3 position push button switch Installation diameter 22mm
Protection level: IP65
Rugged and reliable, with a mechanical life of 3 million and an electrical life of 500,000
Normally open and normally closed contact groups are independent of each other and can be combined as needed for easy replacement
4. Product Details
The hole diameter of this style is 22mm; 2. Flame retardant and temperature resistant plastic shell, silver contact, heating current 10A; 3. Long life and stable performance; 4. Rough silver contact to ensure good contact performance;High quality flame retardant plastics; 5. Head: Knob.
