Description
1. Product Introduction

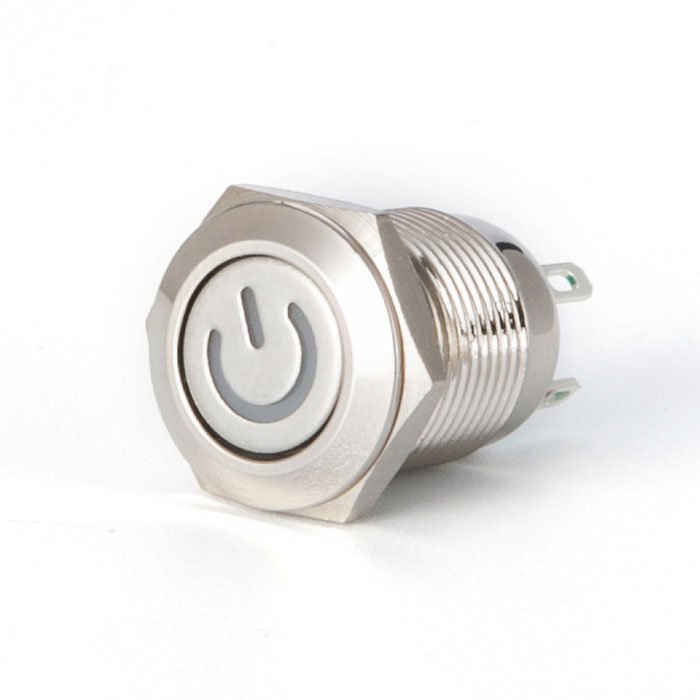

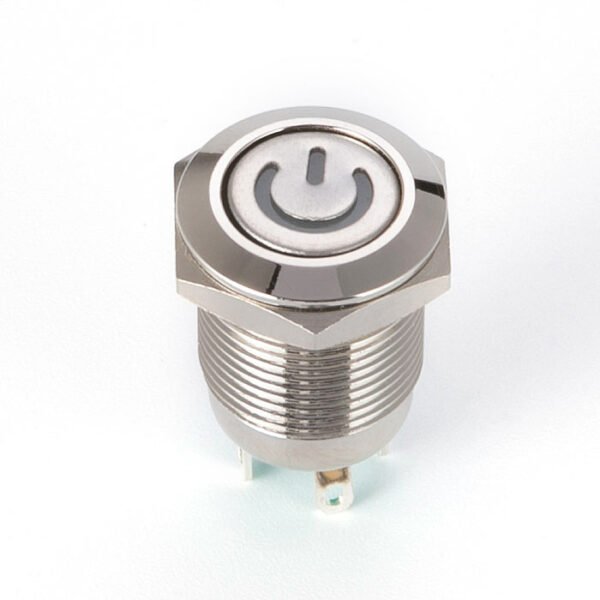

4-pin power symbol switch Stainless steel switch, with power symbol, high-quality metal material and IP65 waterproof protection, can be used in humid or dusty environments.A product that everyone loves.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications

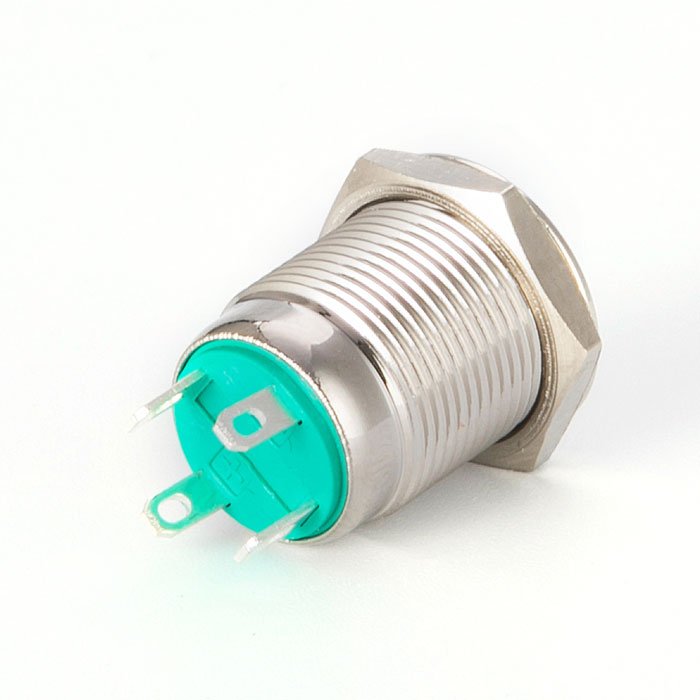

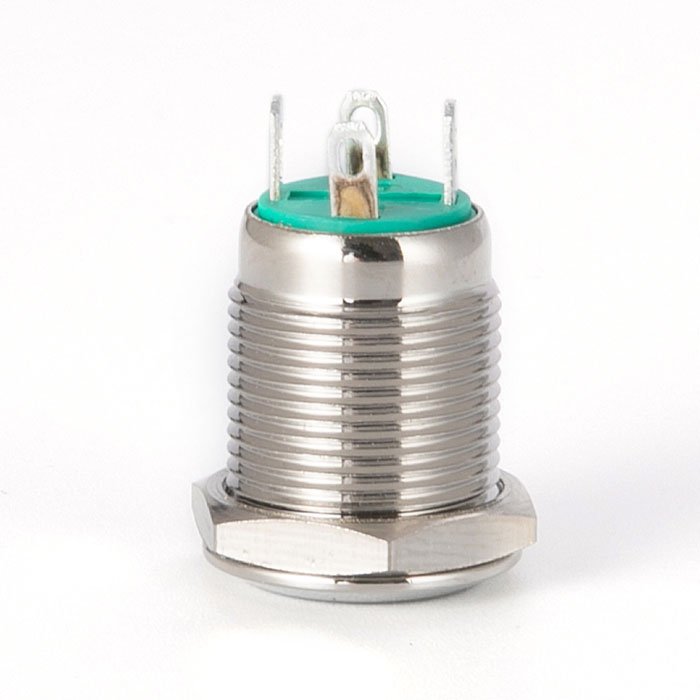

4-pin power symbol switch stainless steel material, It is fixed with hexagonal nuts, sturdy and durable. High-end appearance and good touch. Waterproof IP67 grade. With pre-wired 4-pin socket for easy installation. Contact configuration 1NO1NC. It is widely used in control circuits, and can be used in automobiles, ships, trucks, households, industrial equipment, medical equipment, etc.
4. Product Details

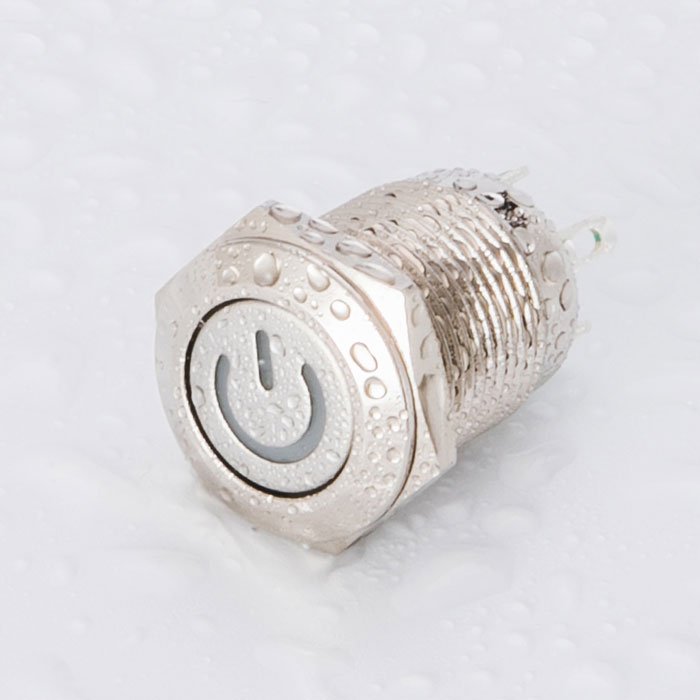

4-pin power symbol switch It is a reliable, low-cost device, available in a variety of colors. Its IP67 waterproof rating makes it suitable for marine and external environments. The sturdy metal housing can withstand vibration and other harsh environmental conditions.
