1. Product Introduction
This kind of momentary switch aluminum metal push button switch has good waterproof effect and is widely used to control LED and circuits. It is also suitable for refitting cars, ships, yachts, household appliances, industrial applications,etc. IP65 waterproof protection, anti-rust, can be used indoors, wet or dusty environment.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications
aluminum metal push button switch The advantage of the button is the momentary switch function of the button: press-open, release-close; durability: minimum 100,000 operations; good moisture-proof and waterproof performance IP65; convenient installation: with solder terminals; mounting hole size: 22mm general type; wide range of uses: household Electrical equipment, industrial operation equipment, modified equipment, etc. are all applicable.
4. Product Details

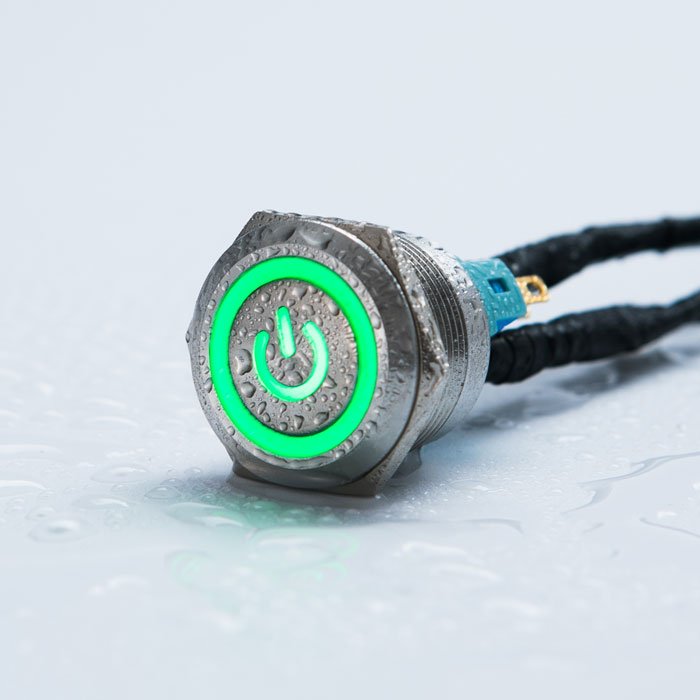

aluminum metal push button switch The halo around the button head lights up when activated. It can be wired to make the LED lighting constant or only when the switch is in the on position.
