Description
COB series Emergency Pendant Control Station rainproof type lifting equipment push-button switch, imitation of similar foreign products on the basis of carefully improved products, expand the use of function, its technical performance to reach the advanced level of foreign contemporary, the switch adopts all plastic shell, reasonable structure, product configuration rubber cable jacket and waterproof seal, with good dust and rain proof performance, Its protection performance reaches IP54 level, so this product is especially suitable for open air, rain, snow, dust environment of the circuit control system, such as crane, electric hoist and other equipment remote control.
The regular color of the shell is Red; Other colors can be made according to quantity.
Product Parameter

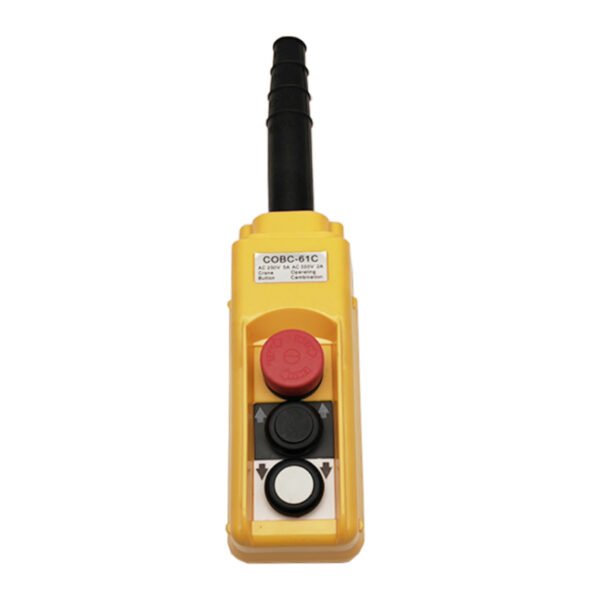

| Model number | COB-61C |
| Material | Plastic |
| Max. Voltage | 660V |
| Rated voltage current | AC 380V 2A; AC 220V 3.5A; |
| Shock resistance | 100g conforming to IEC68-2-27 |
| Electric chock protectin | Class II conforming to IEC 536 and NFC 20-030 |
| Degree of protection Op. cycles | IP65 conforming to IEC 539, IP657 conforming to NF C20-010 |
| Mechanical durability | 1 million |
| Enclosure A | Double insulated polypropylene, coloured yellow througout |
| Thermal current(Ith) V | 10 |
| Rated insulation voltage(Ui) | ZB2-BEY,XEN-G,XAC-S: 600,degree of pollution 3 XEN-T:400, degree of pollution 3 |
| Positive operation | Mushrcom head pushbutton: N/C contact with positive opening operation to IEC947-5-1 section 3 |
| Contace operation | N/C of N/O slow break |
| Short-circuit protection | 10A cartrudge fuse type gG(gl) |
| Cabling mm’ | Screw and captive cable clamp terminals. Capacity: min.1×0.5,max. , with or without cable end:2×1.5 or 1×2.5mm 2.6.3mm fast on connectors (on request), pleaseconsult your Regional customer centre |
Product features and applications
1.Install and configure the cable jacket and waterproof rubber seal. The protection grade is IP65 for dust and rain, and the waterproof can reach IP40-IP65.
2.Anti-collision using high quality engineering plastic, the shell is more anti-collision, more beautiful and strong.
3.The silver contact is made of copper base, and the contact part is made of silver, which increases the capacity of the contact and the stability of the weak current control system.

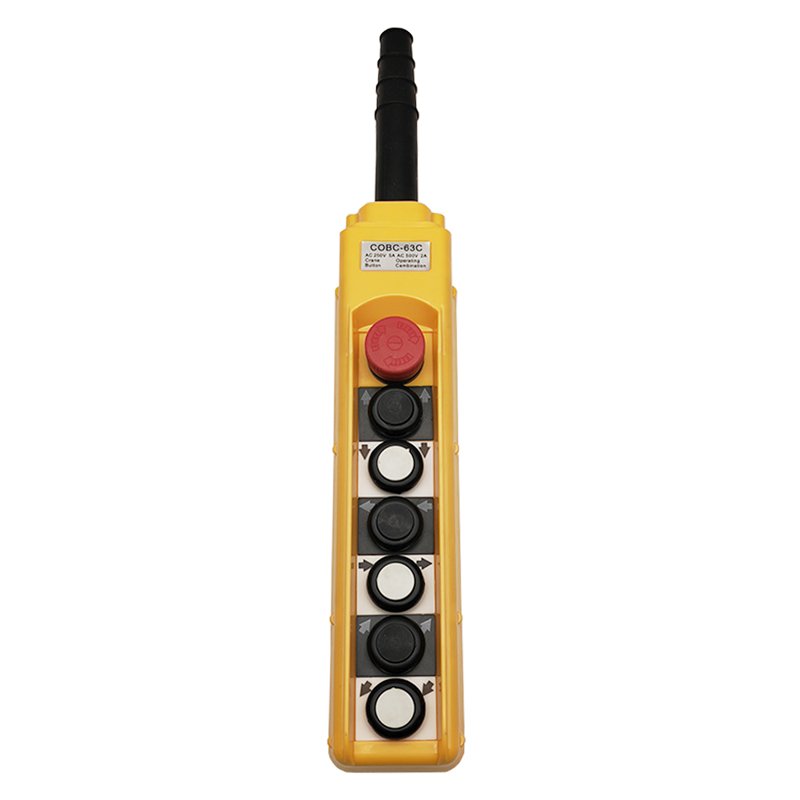

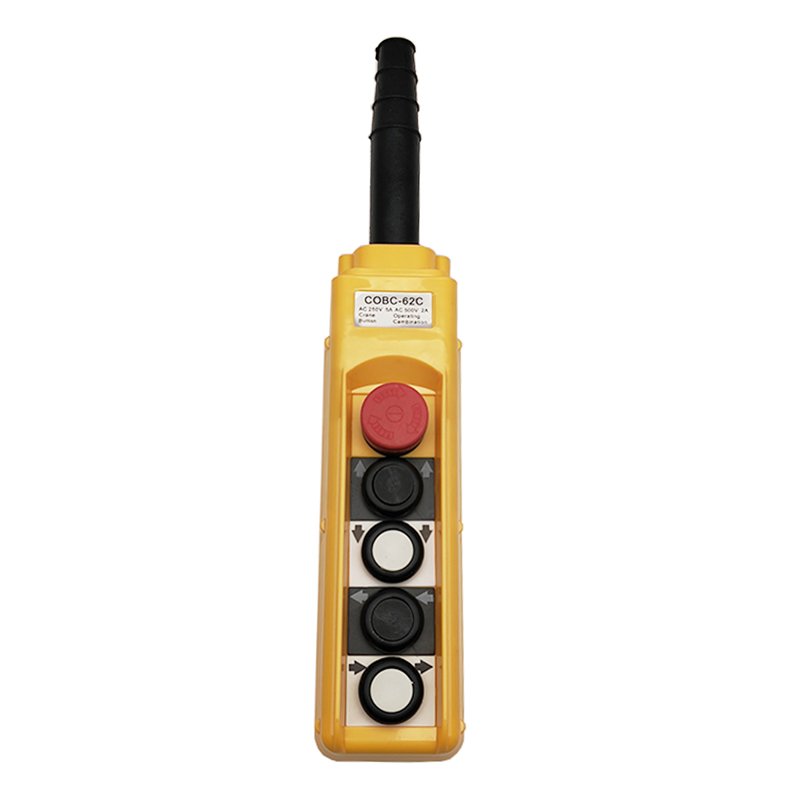

Emergency Pendant Control Station The products are suitable for dusty, outdoor, rain and snow working environment, supporting the use of electric hoist, crane, outdoor conveying system, construction machinery and other equipment that needs wired electrical remote control system.
The switch is made of high quality engineering plastics, the shell material is enhanced anti-collision, and has the portability; The electrical contact is copper base conductive, and the contact surface is silver nickel alloy material, which enhances the contact ability and stability of the cycle power control system.
Product Details

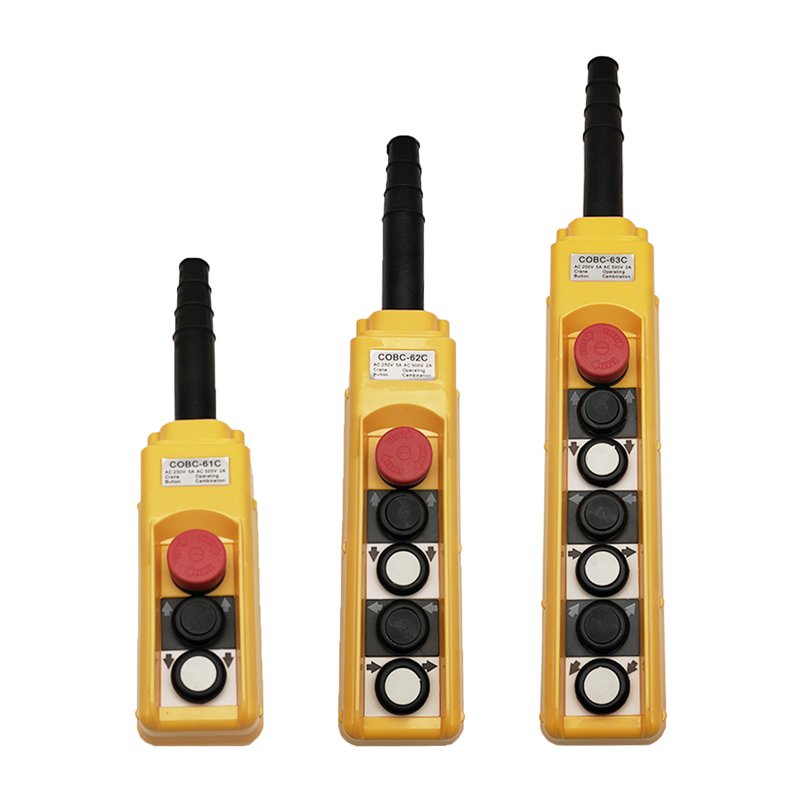

The product closely follows the market demand development of multi-button combination control, more complete functions, and the electrical control circuit allows any key to select different combination functions, so that the device is easier to control.

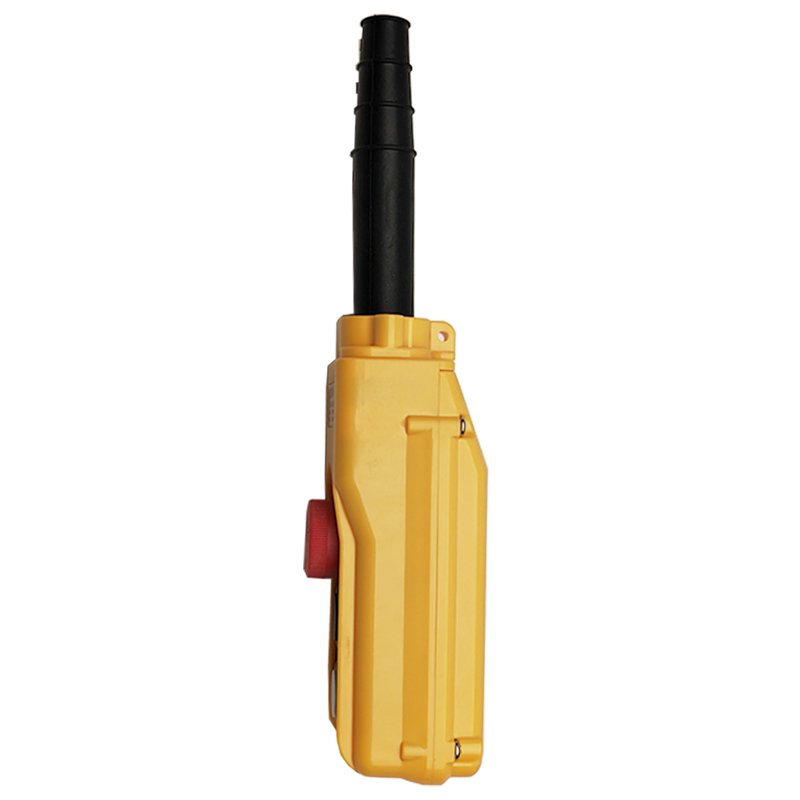

Emergency Pendant Control Station The housing material is double insulated polypropylene; Screw clamping connection; Can provide complete sets of products; Also can provide a variety of parts for customers to assemble; series suspension push-button box is durable, in line with IEC safety standards, suitable for all kinds of mechanical handling equipment; The appearance of this series of products is not only simple and clear, but also comfortable to operate.
