Description
1. Product Introduction
This is a emergency stop mushroom button red mushroom head emergency stop switch (mushroom switch, push button switch). This is a nice button for any project that requires an emergency stop switch.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications

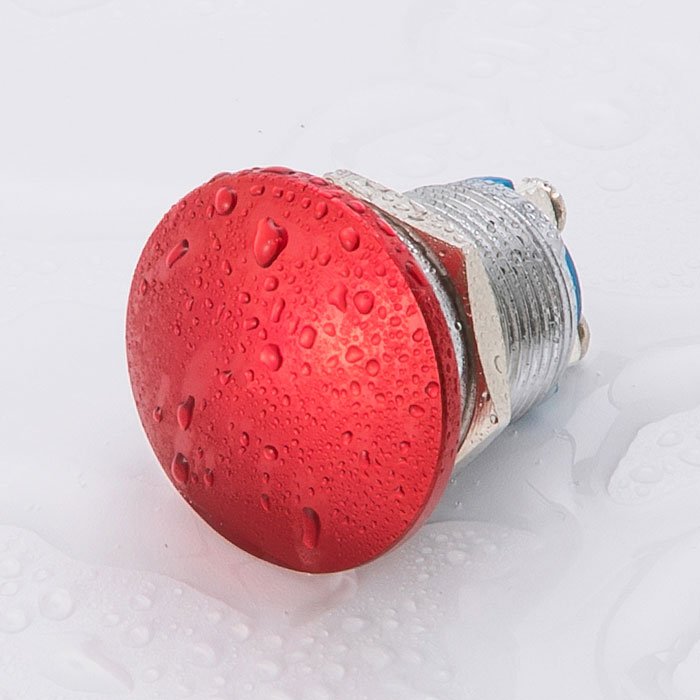

emergency stop mushroom button Stainless steel material, feel good, sturdy and durable. waterproof IP67 grade. for easy installation.Corrosion resistance, wear resistance and pressure resistance. Different switches, buttons and selectors can be used to control automation according to the needs of each installation. Suitable for industrial control of electrical appliances, automation, doors, shutters, etc.
4. Product Details

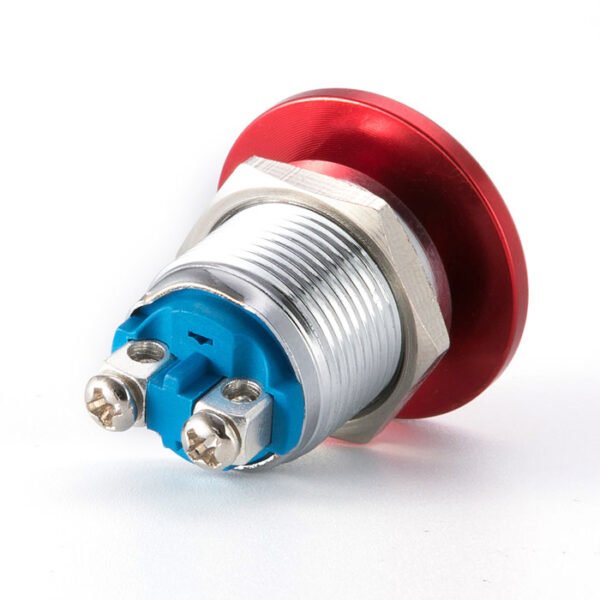

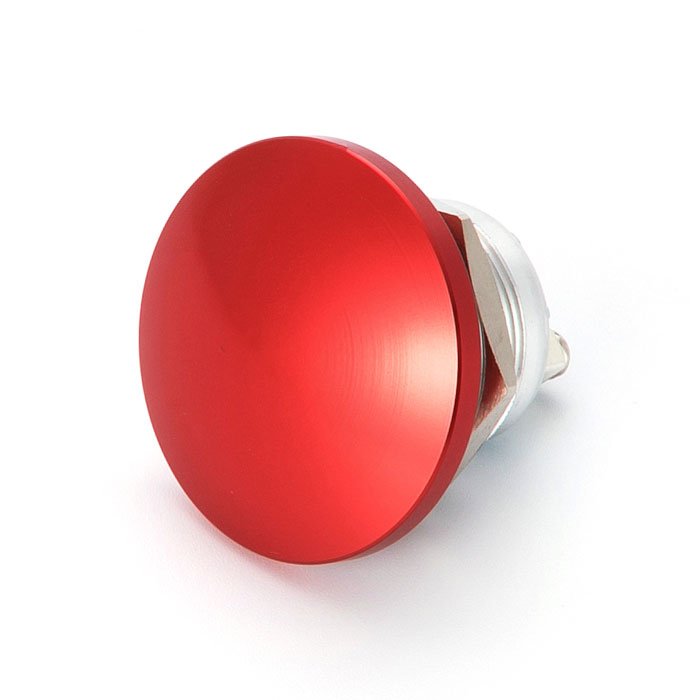

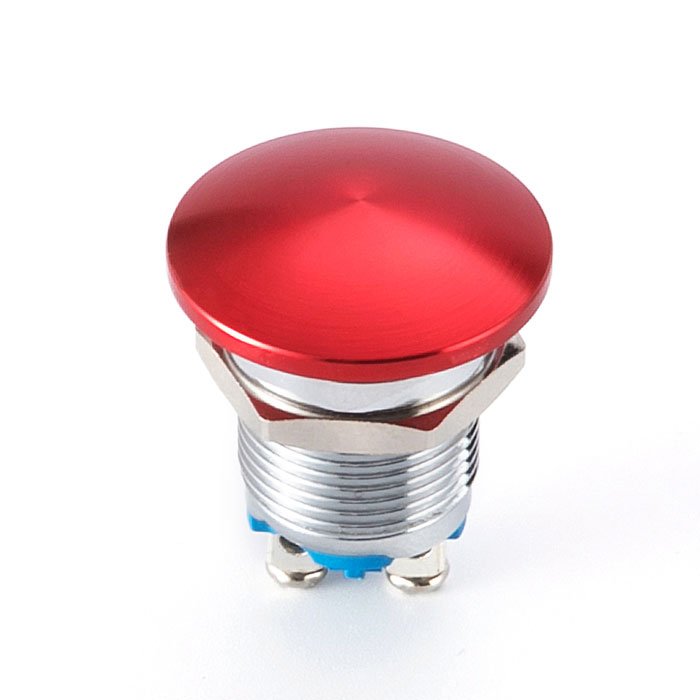

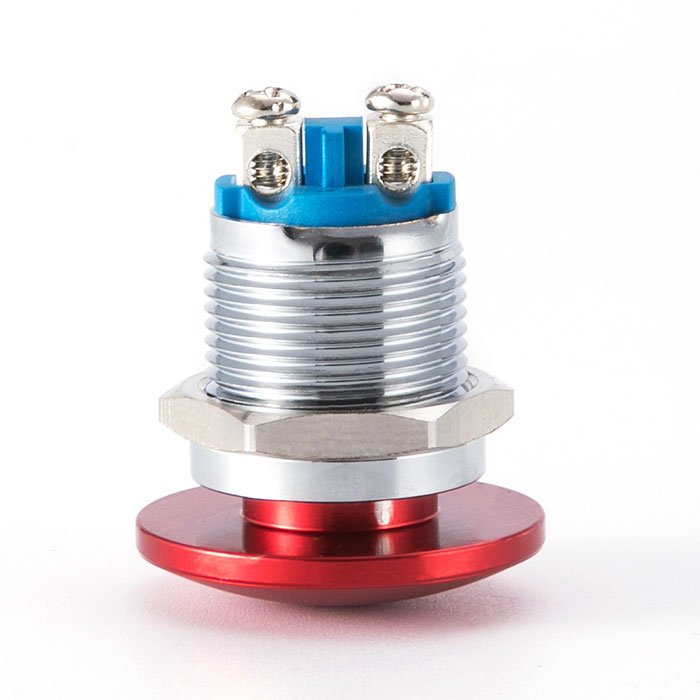

emergency stop mushroom button It is a button with a very sturdy metal body. Press the red button to block the switch. Unlocking is done by turning the red mushroom. The emergency button is used in the control box of electrical equipment and automation.It is easy to configure in the harsh environment of various industries and workshops.
