Description
1. Product Introduction
The emergency stop push button switch is a protective measure that can be achieved by quickly pressing this button in case of emergency. The color is red mushroom head. It is also used in some environments such as industrial equipment and instruments.
2.Product Parameter (Specification)
| Rated insulation voltage | AC 600V (50/60Hz) | |
| Convectional current | 10A | |
| Insulation resistance | ≥50MΩ | |
| Contact resistance | ≤25MinΩ | |
| Mechanical life | 100*104(Pushbutton) | 50*104(Selector switch/Key switches) |
| Electrical life | 500*104(Pushbutton) | 250*104(Selector switch/Key switches) |
1.Surrounding temperature : -25℃~+55℃;
2.Air relative humidity : ≤85%;
3.It can be normally work under following condition : Vibration frequency is 2-80Hz and acceleration speed is 0.7g/h;
4.Pollution grade III,installation sort is III, protection grade is up to IP65;
5.Altitude : ≤2000m.
3.Product features and applications
The emergency stop push button switch can be reset reversely by pressing stop and lock. Emergency stop with striking red mushroom cover. It is famous for its mature technology in the power market and is applicable to environmental protection rules.
4. Product Details

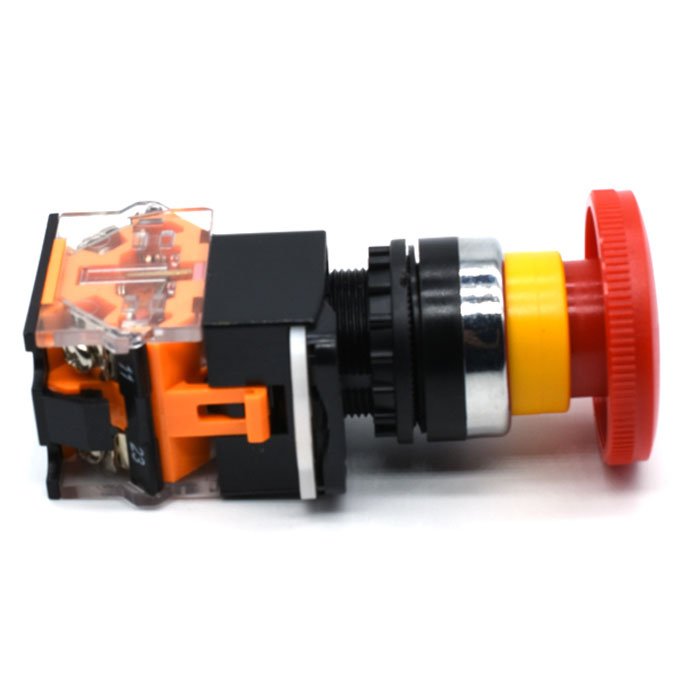

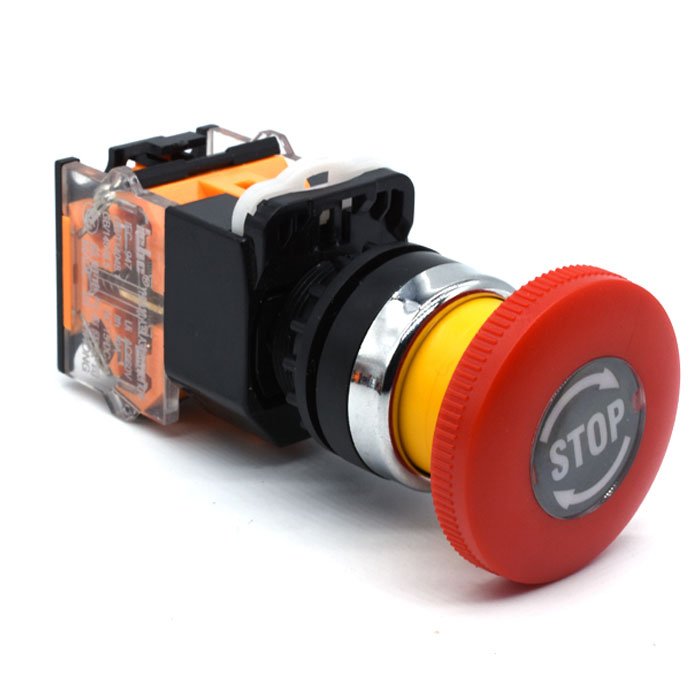

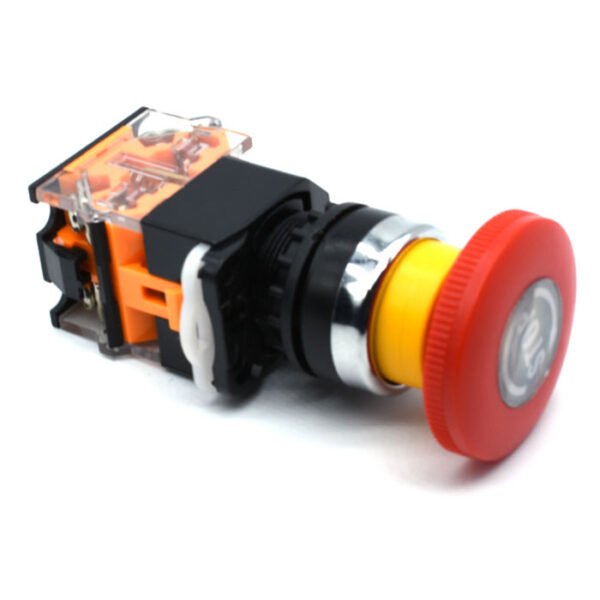

Press stop and lock, twist reset, 2 screw terminals, 1 NC contact type, mushroom shaped emergency stop push button switch has the characteristics of compact structure, fast operation, easy use and installation
