Description
1. Product Introduction
F24 industrial electric hoist The material used in the product is ABS, plastic PA, which is safer,It is sturdy and durable.The signal is stable and the penetration is strong. The anti-collision angle design better protects the remote control, with a non-slip safety rope, so that the remote control is not easy to be damaged and has a longer service life. Our company has a wide variety of products to choose from, including many custom made.Adhere to the stability of product quality and adhere to the strict requirements of product manufacturing.
2.Product Parameter (Specification)
| Model Number: | F24-8D |
| IP Level | IP65 |
| Material: | ABS, plastic PA |
| button color: | red white black green |
| Usage: | 2 channel wireless remote control |
| Shell Material | Fiberglass shell |
| Security Code | 32-bit |
| Temperature Range | -35℃ ~ +80℃ |
| Control Distance | Up to 100 meters in the open environment |
| Transmitter power supply | DC 3V (2 alkaline AA batteries can be used for 4 months) |
| Receiver power supply | AC 380V/220V optional, or DC 12V/24V |
3.Product features and applications
Light and durable, safe and stable; IP65 waterproof and dustproof grade;
Nylon reinforced plastic shell can prevent the damage caused by falling and strong collision;
Low power consumption (using two 5 AA alkaline batteries with an average service life of 2 months);
The PC software can be used to set a variety of key functions to meet various operation requirements;

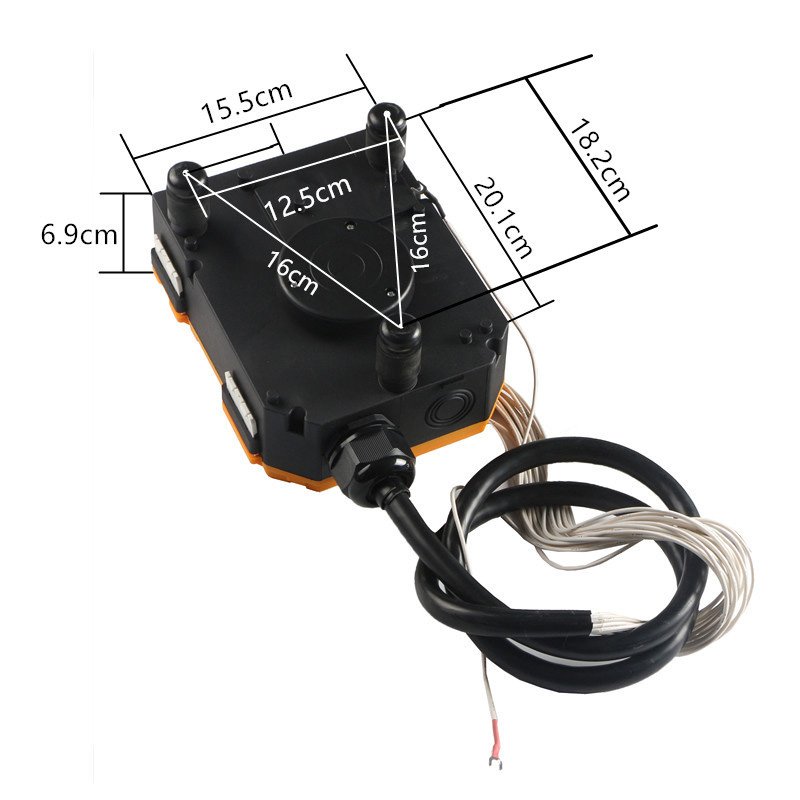

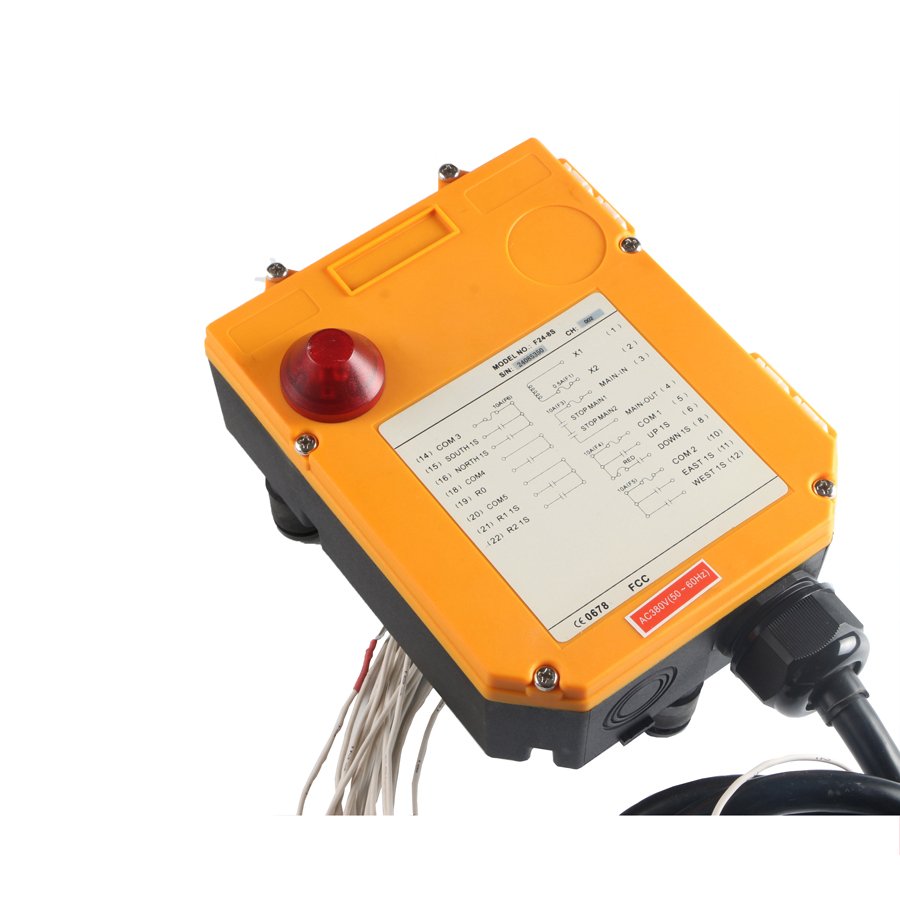

The receiver includes output cable, which is easy to install and fast;
Multiple security protection design; Hamming code, watchdog line and 32-bit non repeating identification code.

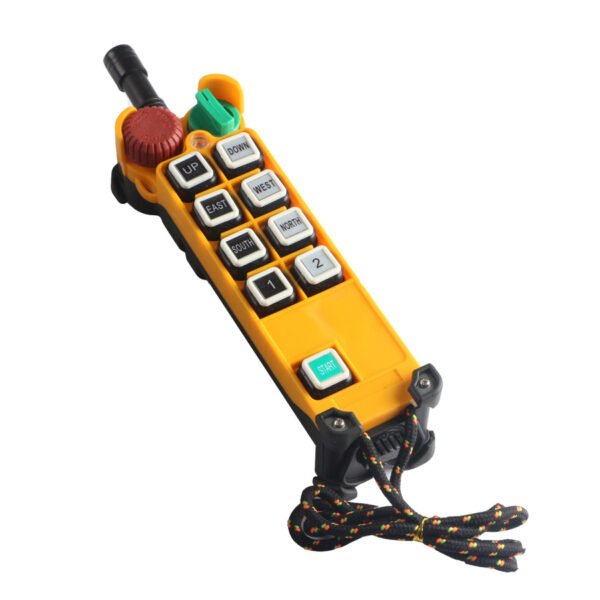

8 double-speed buttons, 1 emergency switch, 1 power button, 1 rotary key. suitable for MD hoists.
Flexible design, can be assembled by yourself;
The transmitting and receiving mechanism is a built-in antenna (the receiver can be additionally equipped with an accessory: passive antenna);
F24 industrial electric hoist Safety push button switch Widely used in various industrial equipment.Using the battery voltage warning device, the circuit can be automatically cut off when the voltage is insufficient.
4. Product Details

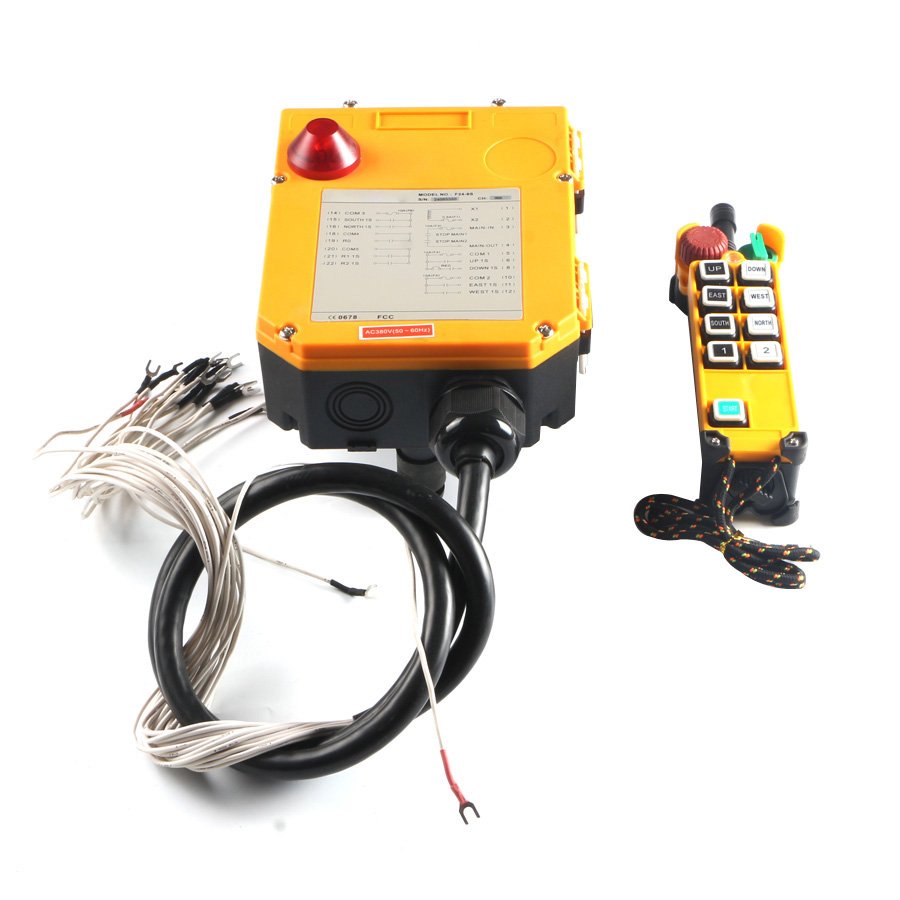

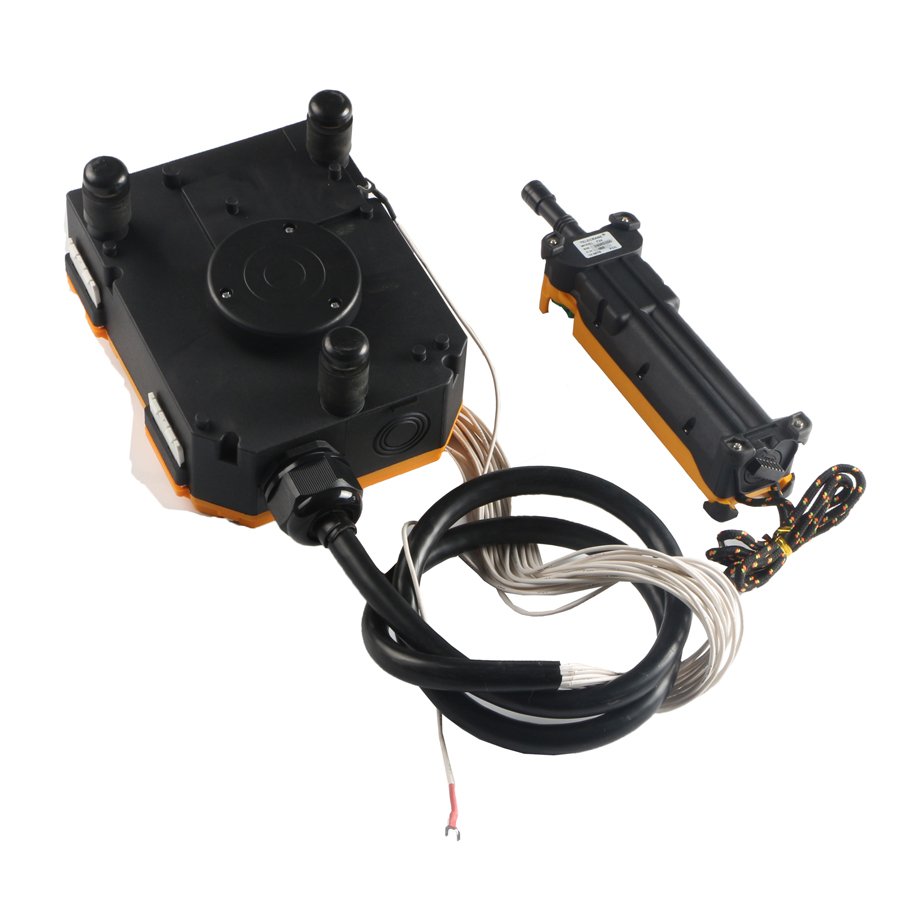

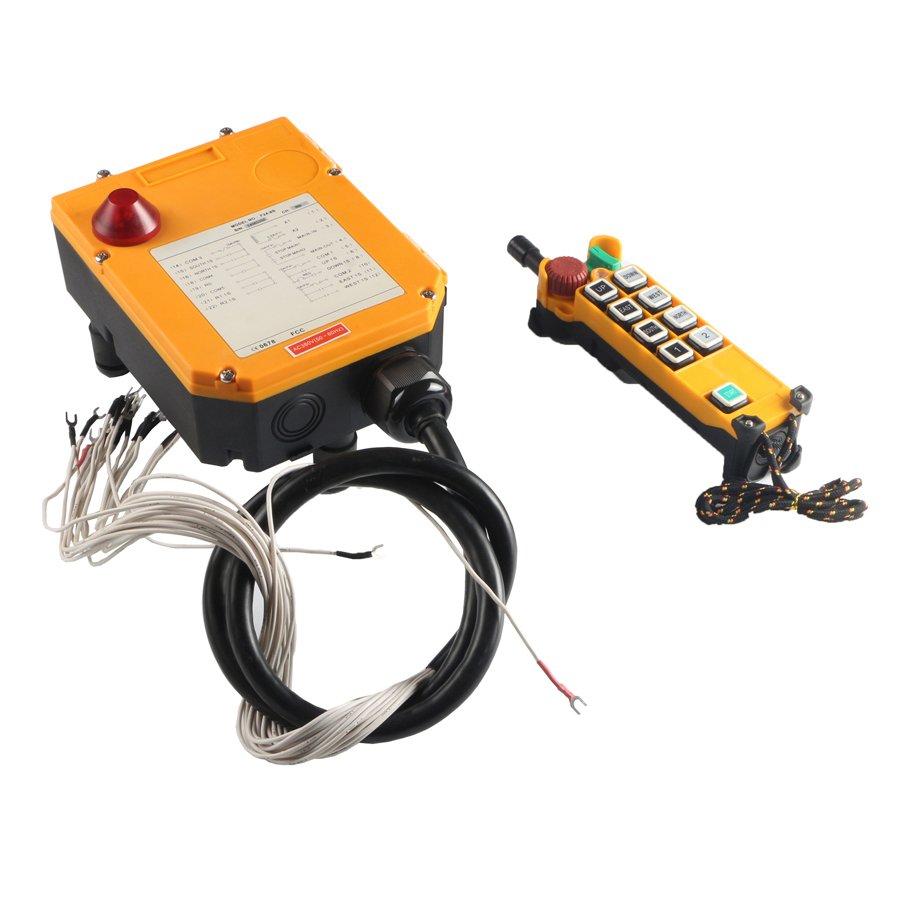

Our products F24 industrial electric hoist, matching receiver,Strong durability and good circuit board performance. Colors are red, green, white, black; other colors can be customized by quantity. Our products have high-quality materials, are easy to install, and are durable and suitable for various industrial equipment. For example, it is suitable for bridge crane / bridge crane / chain crane / monorail / concrete pump truck / mobile crane / tower crane, etc. With expertise, expertise and experience, we are striving to do better.
