Description
1. Product Introduction
press green led push button switch, it remains down and locked in the closed position, press the button again, it releases and “unlocks”.
The button features a raised top and good tactile feedback when activated. Widely used. High switching capacity.
2.Product Parameter (Specification)
| Rated insulation voltage | AC 600V (50/60Hz) | |
| Convectional current | 10A | |
| Insulation resistance | ≥50MΩ | |
| Contact resistance | ≤25MinΩ | |
| Mechanical life | 100*104(Pushbutton) | 50*104(Selector switch/Key switches) |
| Electrical life | 500*104(Pushbutton) | 250*104(Selector switch/Key switches) |
1.Surrounding temperature : -25℃~+55℃;
2.Air relative humidity : ≤85%;
3.It can be normally work under following condition : Vibration frequency is 2-80Hz and acceleration speed is 0.7g/h;
4.Pollution grade III,installation sort is III, protection grade is up to IP65;
5.Altitude : ≤2000m.
3.Product features and applications
Product material: the green led push button switch body adopts zinc alloy and advanced flame retardant plastic, and the contact adopts special silver alloy, which has the advantages of high resistance to electric corrosion.The product market has long service life, high stability and high repurchase rate.

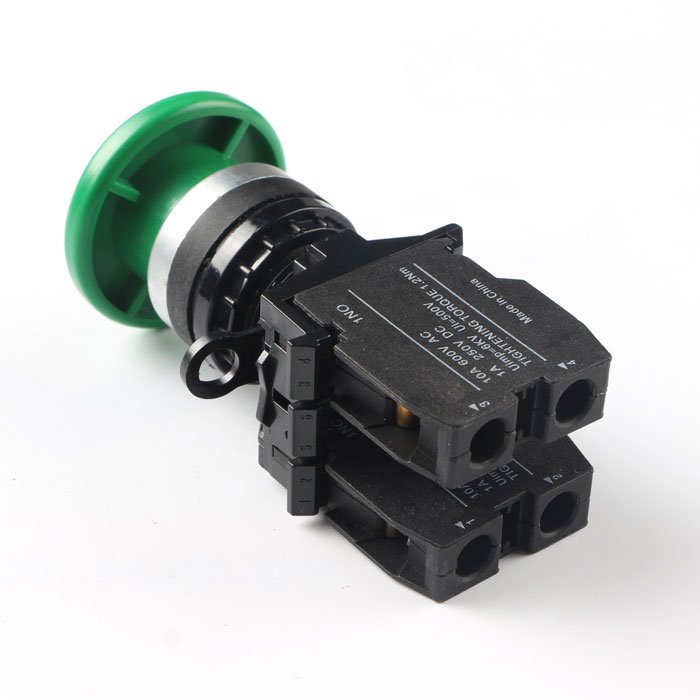

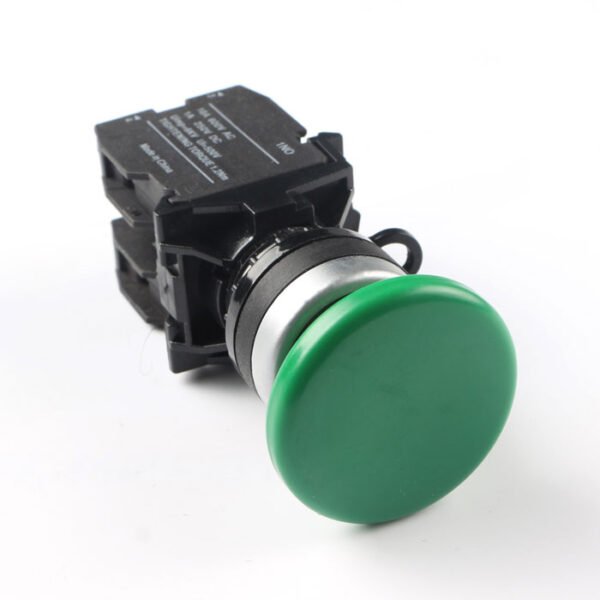

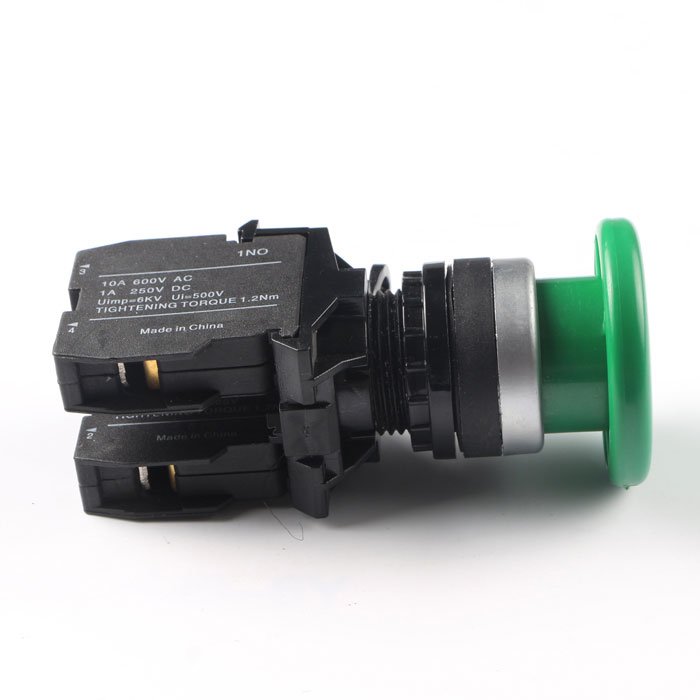

4. Product Details
green led push button switchwas used for control signal and interlocking, and for controlling electromagnetic starter, contactor, relay and other circuits. Buttons with indicators are also applicable where signal indicators are required.Maintain the rugged performance required in harsh environments while showing a low-key and fashionable appearance
