Description
1. Product Introduction
This is a green push button switch green mushroom head emergency stop switch (mushroom head switch, push button switch). For any project that requires an emergency stop switch, this is a beautiful button with bright colors.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications

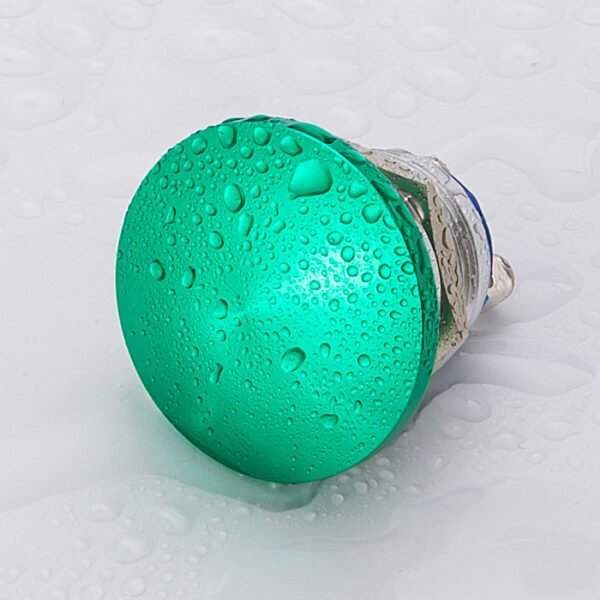

green push button switch Stainless steel material, good hand feel, sturdy and durable, and the material has no peculiar smell. Waterproof IP67 level. Easy to install. Corrosion resistance, wear resistance and pressure resistance. According to the needs of the installation, different switches, buttons and selectors can be used to control the automation. Suitable for industrial control of electrical appliances, automation, doors, shutters, etc.
4. Product Details

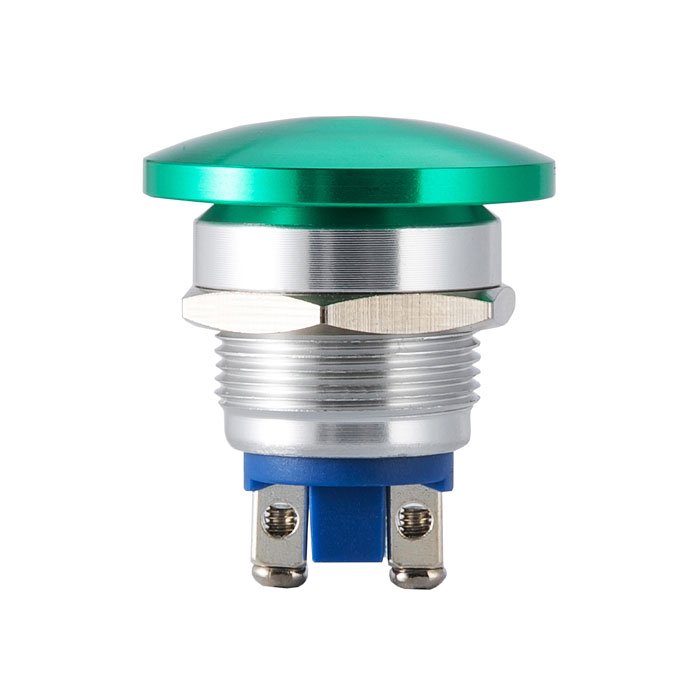

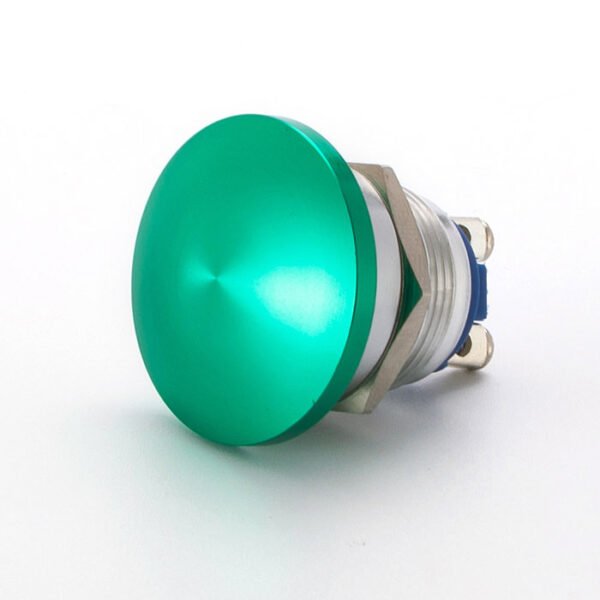

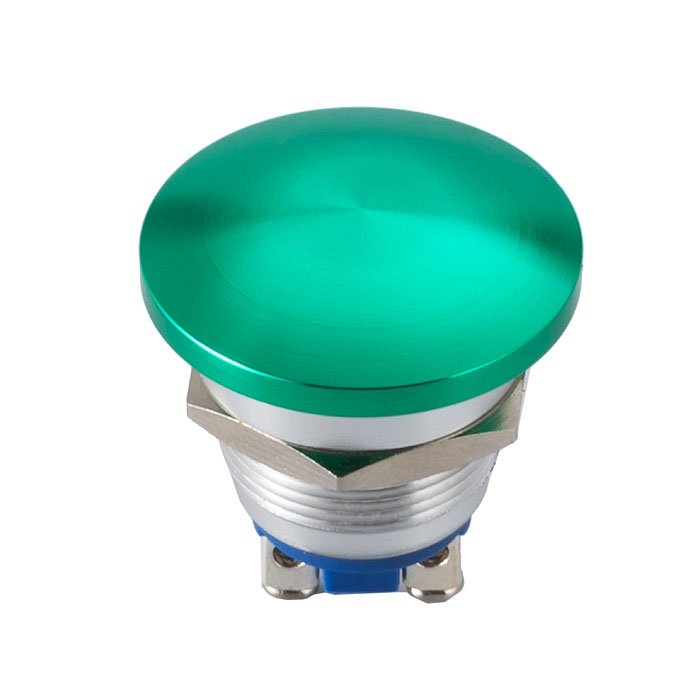

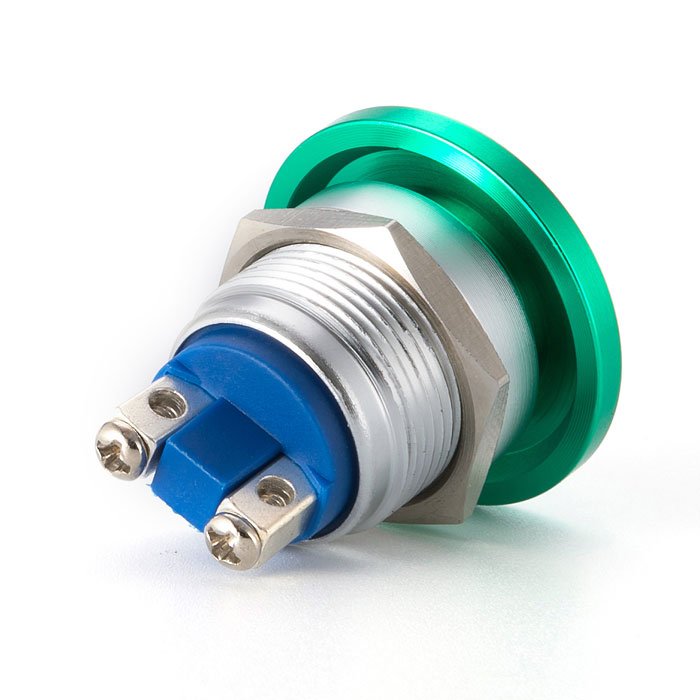

green push button switch This is a green emergency stop button with a very sturdy metal body. Press the green button to stop the switch. Unlocking is done by turning the green mushroom. The emergency button is used in the control box of electrical equipment and automation, and is easy to configure in the harsh environment of various industries and workshops.
