Description
1. Product Introduction

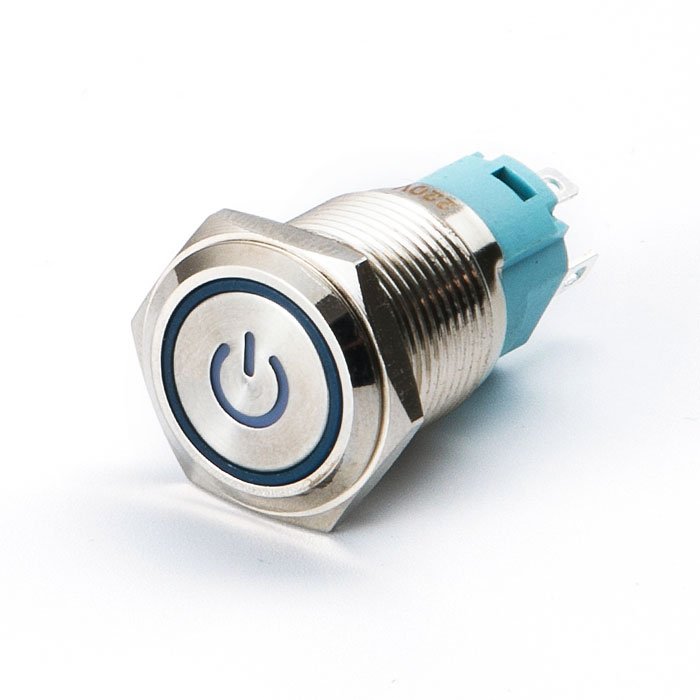

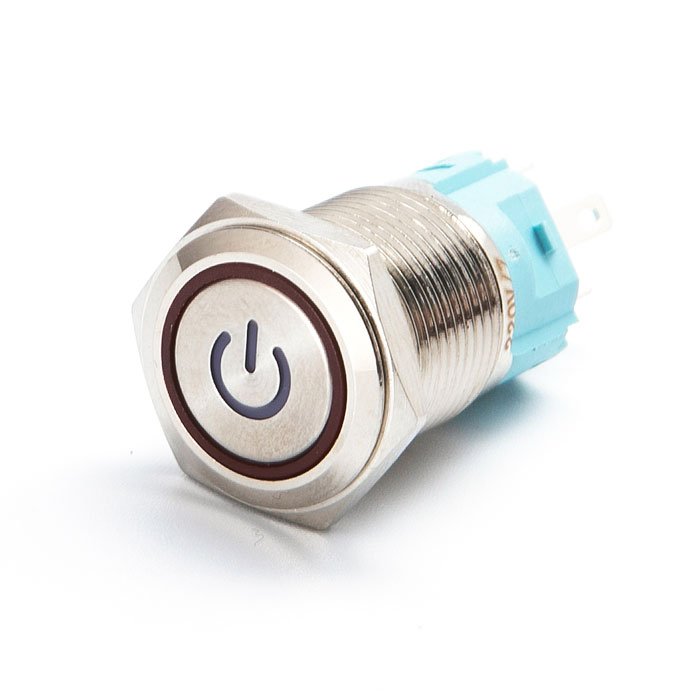

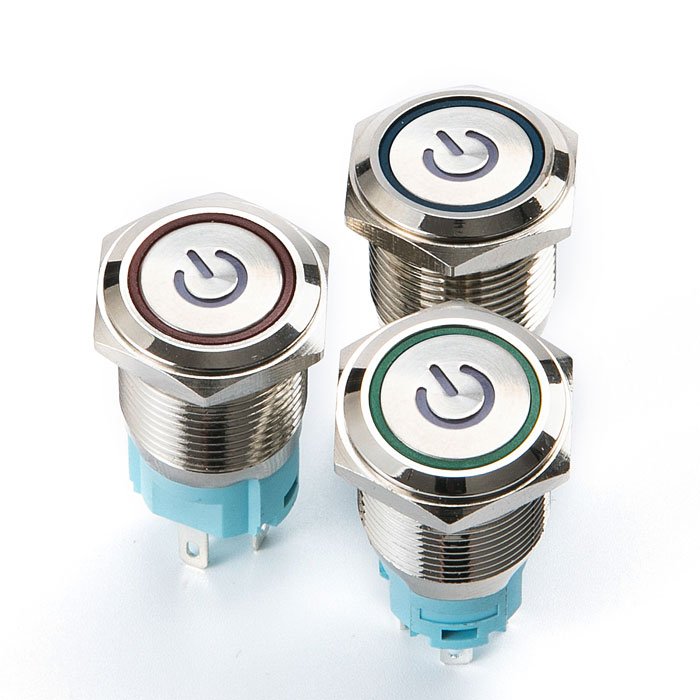

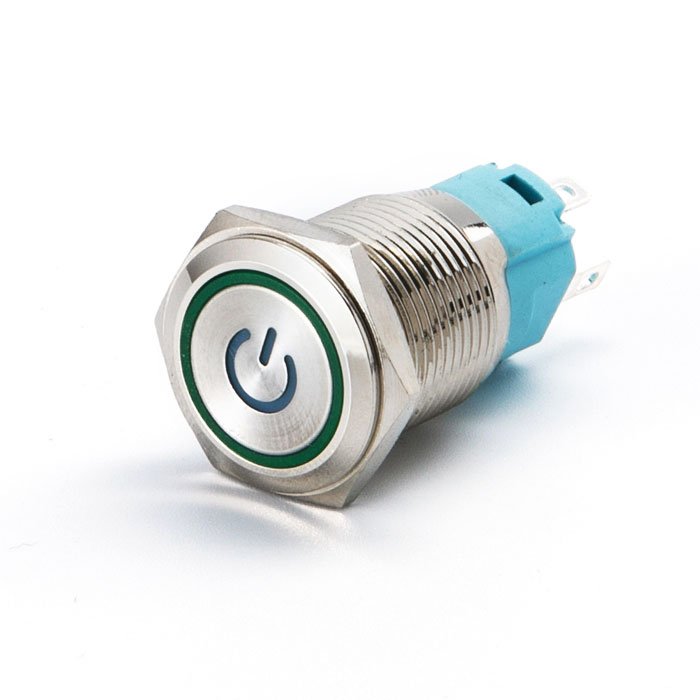

metal button led Stainless steel switch, with round button and power symbol, illuminates the halo around the button head when activated. The LED light can be on all the time, or it can be on only when the switch is in the on mode, depending on your connection method.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications

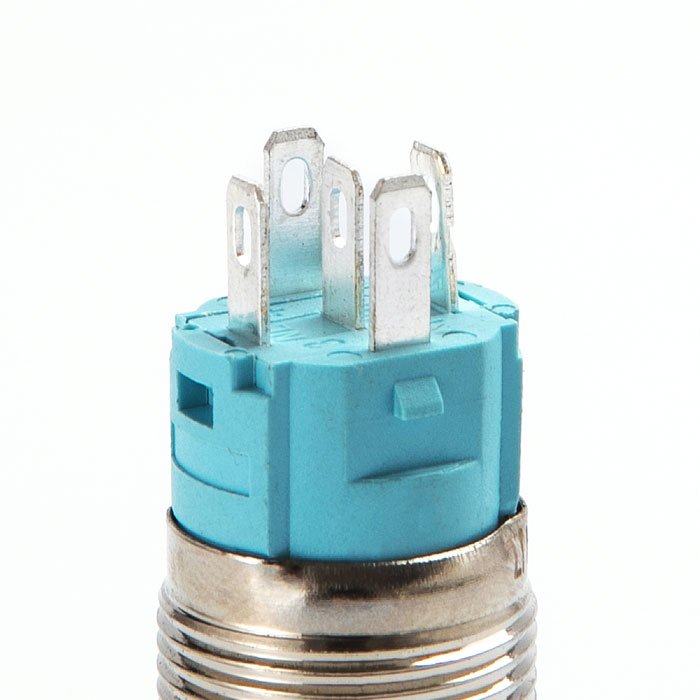

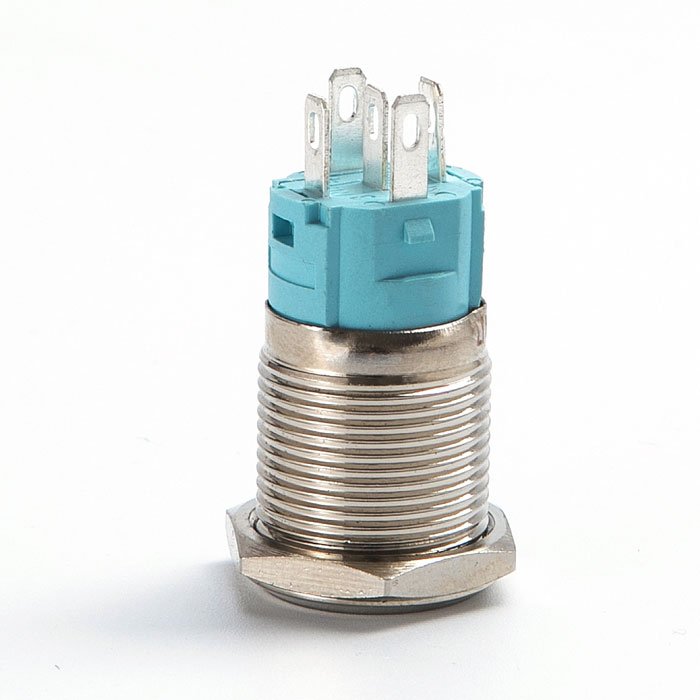

metal button led 16mm stainless steel material, sturdy and durable. High-end appearance and good touch. Waterproof IP67 grade, can be used in humid or dusty environment.With pre-wired 5-pin socket for easy installation. Contact configuration 1NO1NC. It is widely used in control circuits, and can be used in automobiles, ships, trucks, households, industrial equipment, medical equipment, etc.
4. Product Details

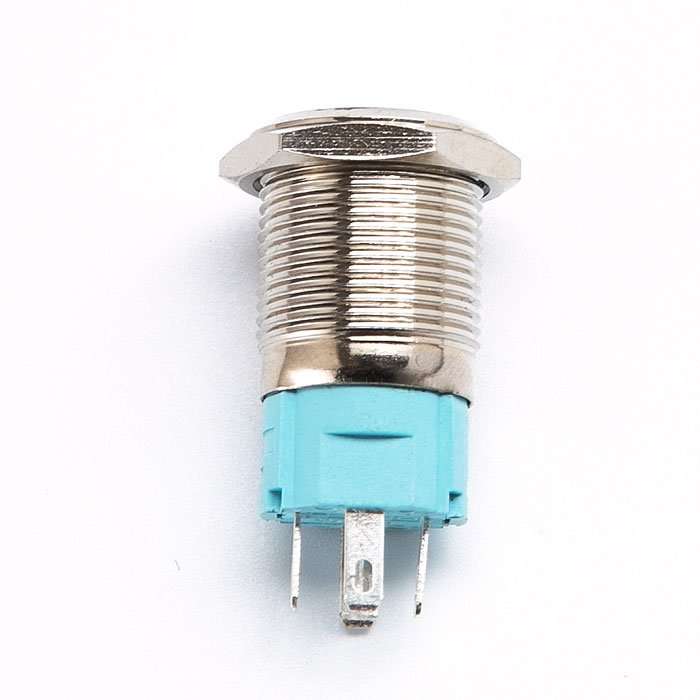

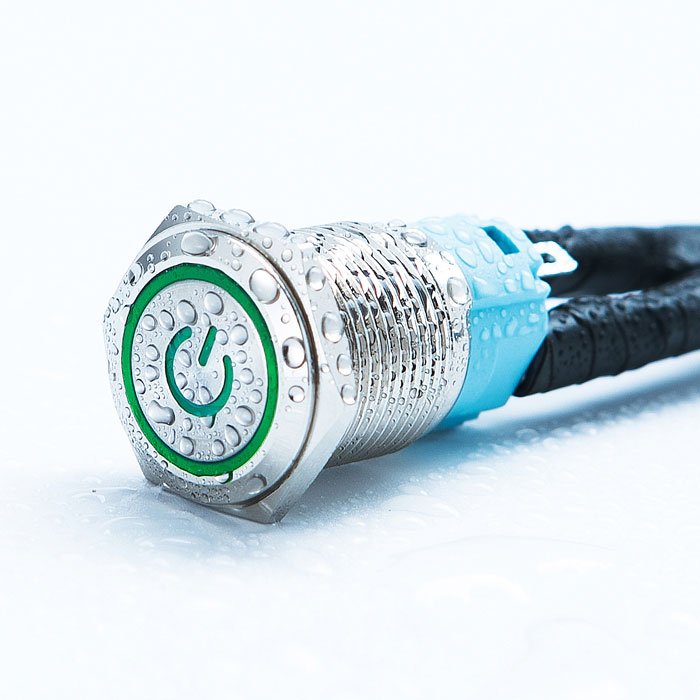

metal button led High-quality waterproof IP65, the sealing ring makes the button switch can be used in a humid environment. The sturdy metal housing can withstand vibration and other harsh environmental conditions.
