Description
1. Product Introduction

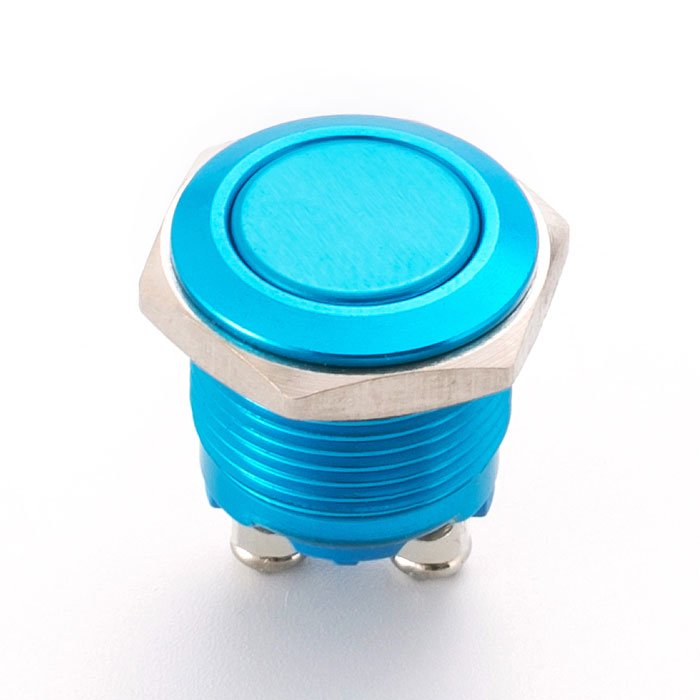

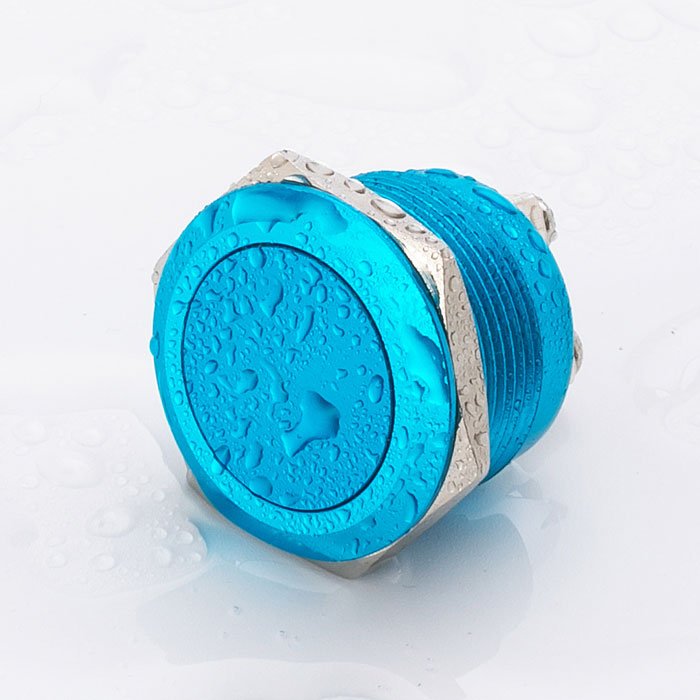

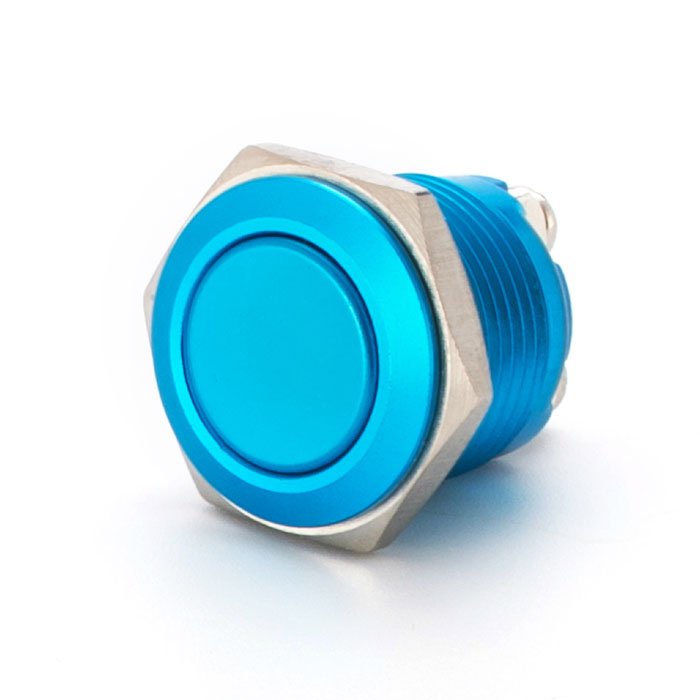

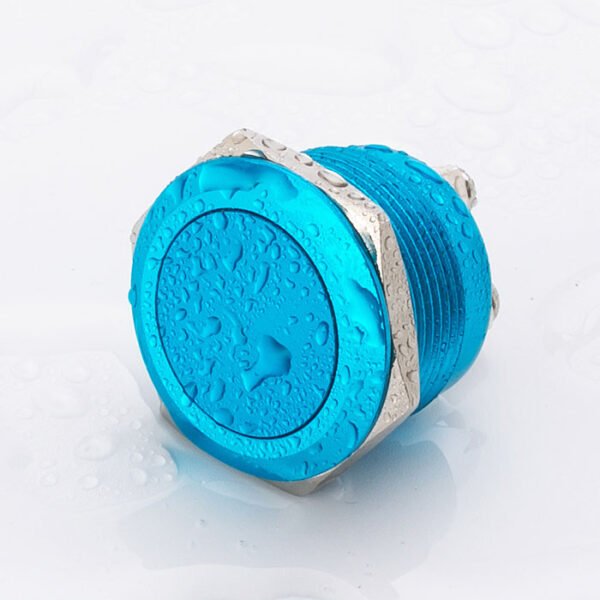

metal button waterproof Momentary waterproof black metal 16mm round button switch, high-quality metal material and IP65 waterproof protection, can be used in humid or dusty environments.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications
metal button waterproof Stainless steel material, good hand feel, sturdy and durable, and the material has no peculiar smell. Waterproof IP67 level. Easy to install. Has good electrical conductivity. Corrosion resistance, wear resistance and pressure resistance. According to the needs of the installation, It is widely used in control circuits, and can be used in automobiles, ships, trucks, households, industrial equipment, medical equipment, etc.
4. Product Details

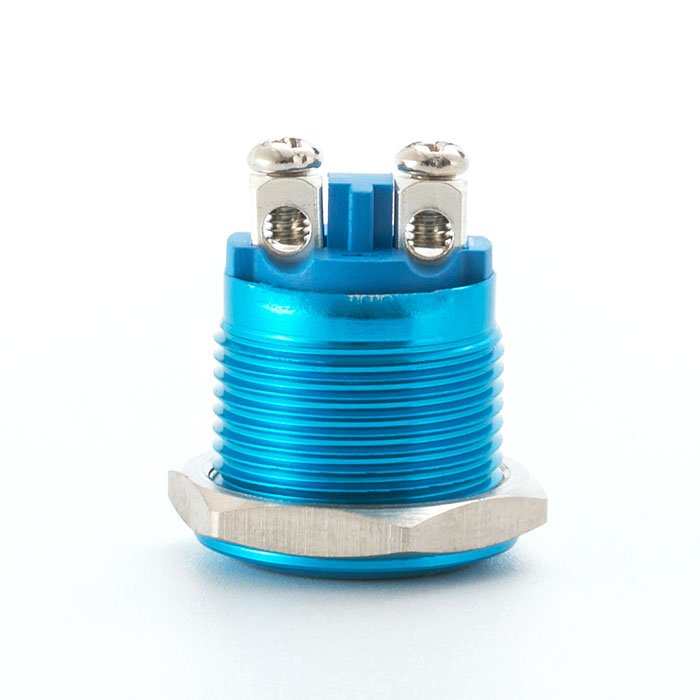

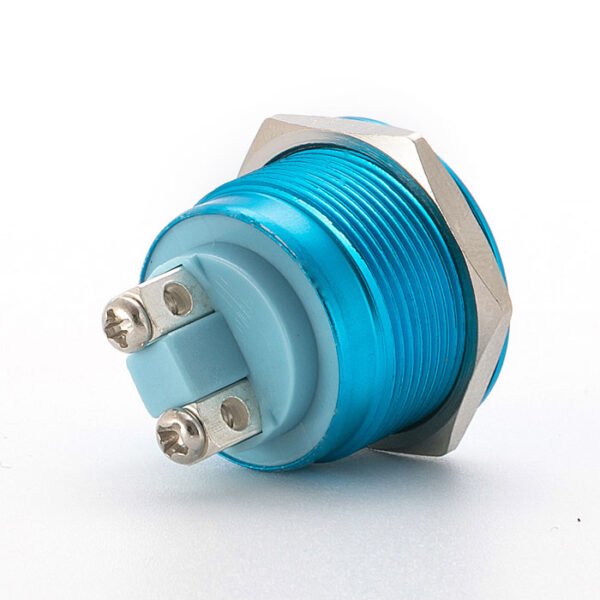

metal button waterproof The round lock switch with screw clamp terminals makes installation easier. 16 mm momentary switch: press, open, finger release, close. The button is used in the control box of electrical equipment and automation, and is easy to configure in the harsh environment of various industries and workshops.
