Description
1. Product Introduction
metal illuminated push button This kind of self-locking switch Stainless steel switch, high-quality metal material and IP65 waterproof protection, can be used in humid or dusty environments.A product that everyone loves.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications

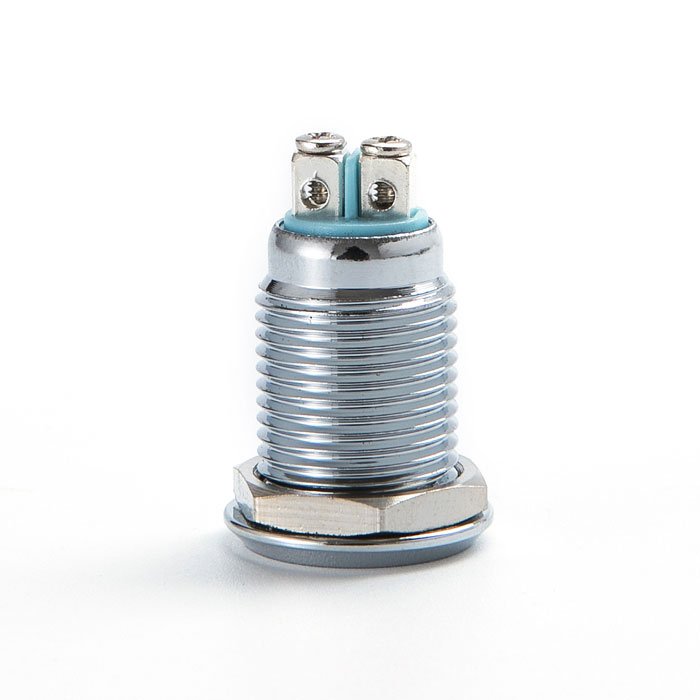

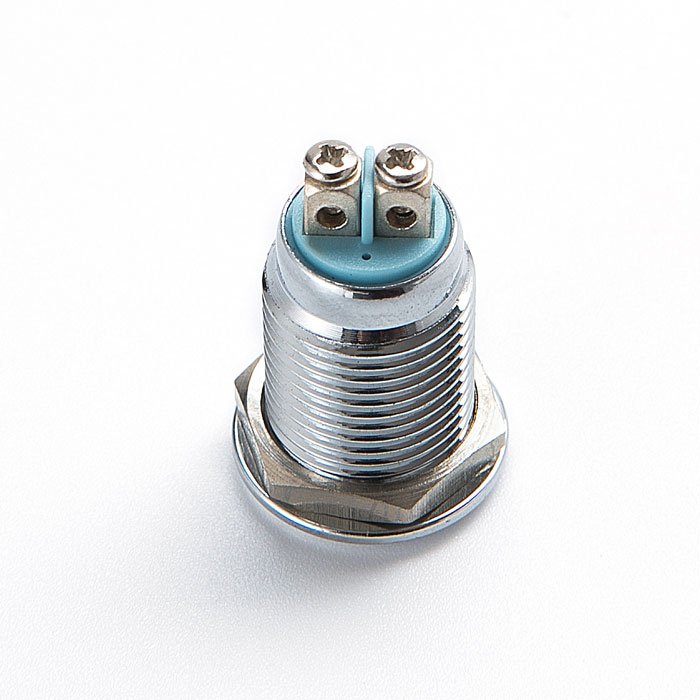

metal illuminated push button Made of stainless steel, strong and durable. Self-locking type, push-open, then push-close. It is fixed by rubber ring and hexagon nut, dustproof and waterproof. Durable and has good electrical conductivity. Ideal for automotive and marine projects, including controlling LED internal/external lights, ignition key switch replacement, universal start button or momentary horn.
4. Product Details

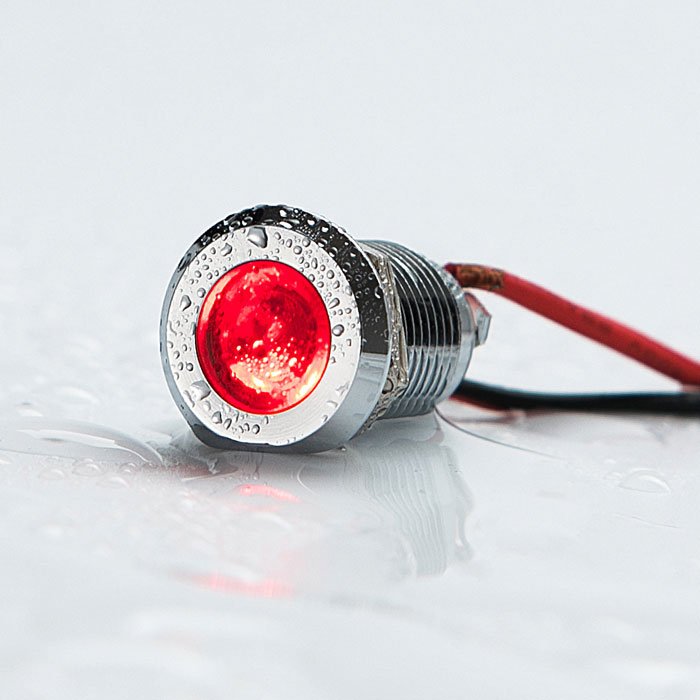

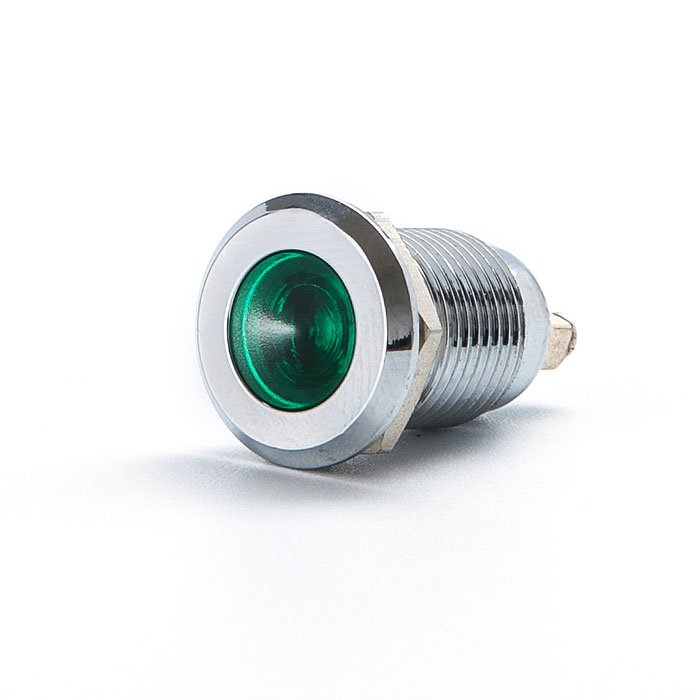

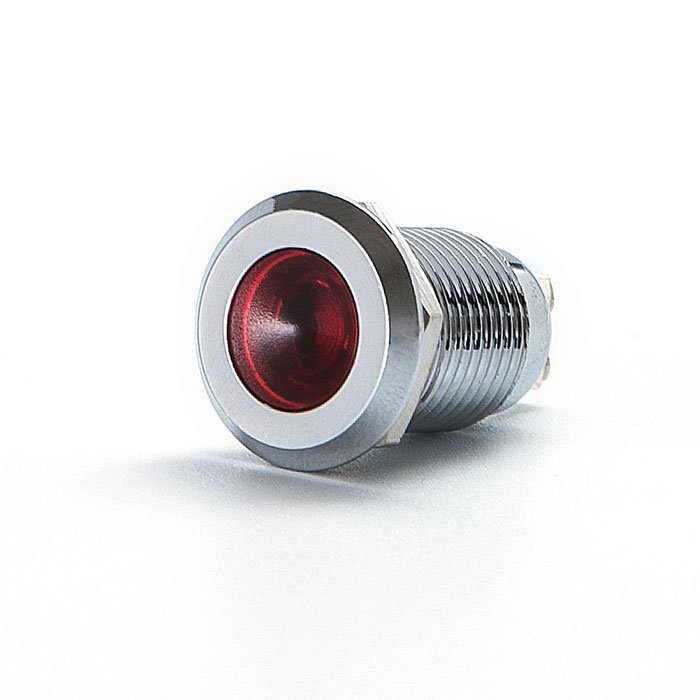

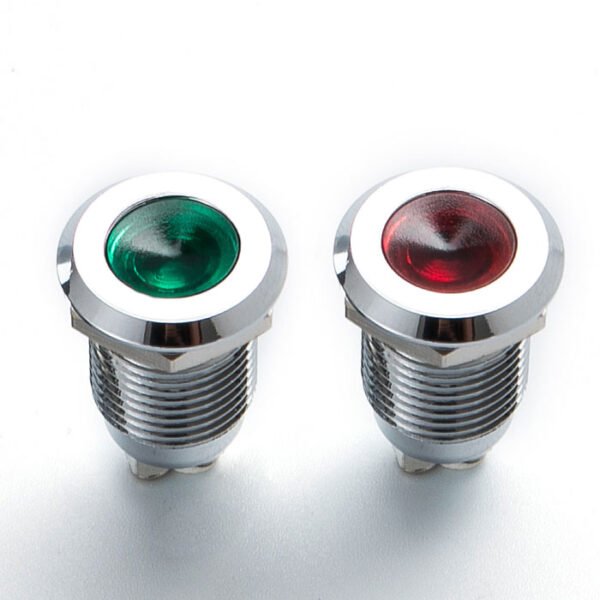

metal illuminated push button The ON/OFF button switch can be used for locking or momentary action, the blue LED ring that lights up when pressed. Suitable for mounting holes with a diameter of 22mm.
