Description
1. Product Introduction
metal push button Button switch: press and hold, ON; release, close. The on/off button switch has a blue indicator light. The switch is separated from the LED ring light. The LED light can be on all the time or only when the switch is in power-on mode, depending on how you connect it. Power life: 200,000 times. Mechanical life: 1000,000 cycles.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications
metal push button The lock button switch is made of high-quality stainless steel and has a mechanical life of up to 10,000 cycles. Easy to connect and durable, IP65 waterproof, suitable for almost all electric vehicle motor start, power start equipment, can also be used as an access control button, instead of electrical equipment, household appliances.

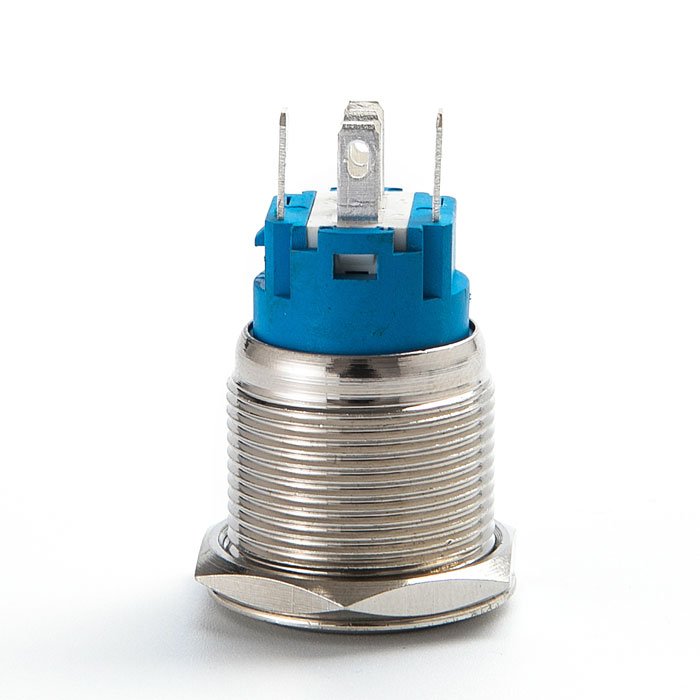

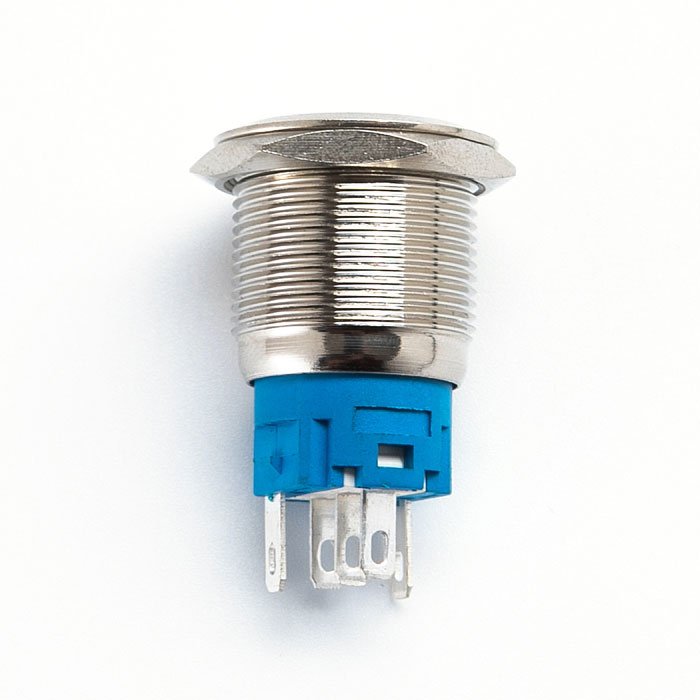

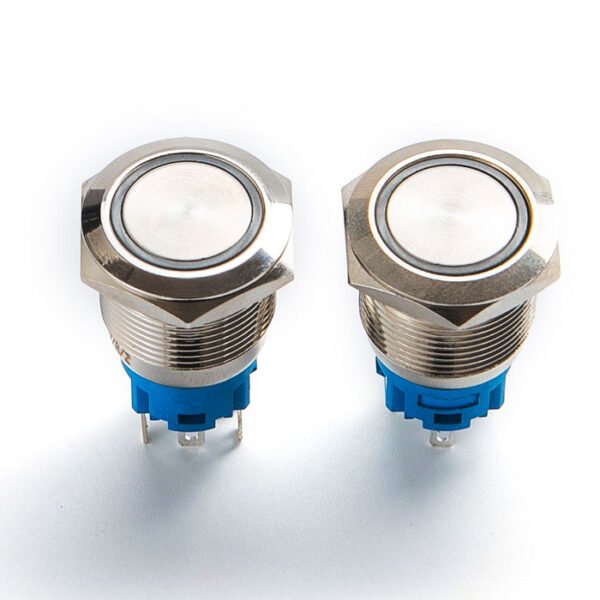

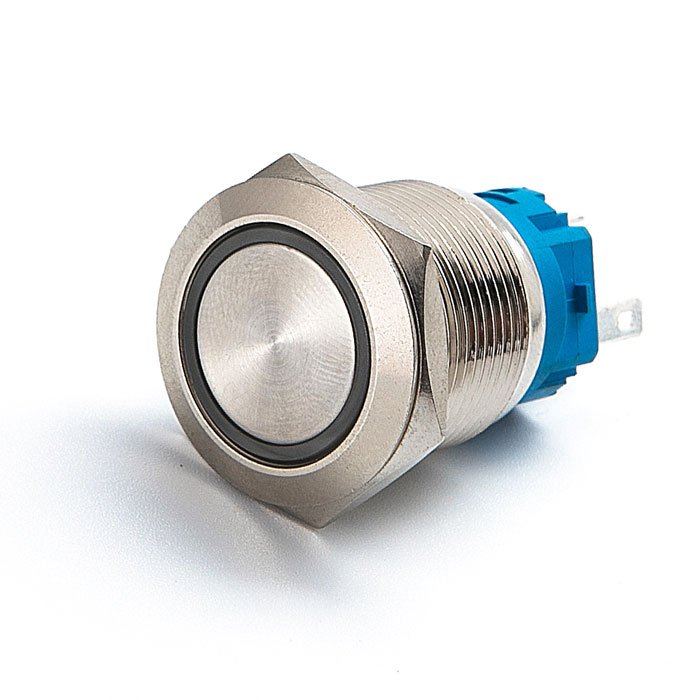

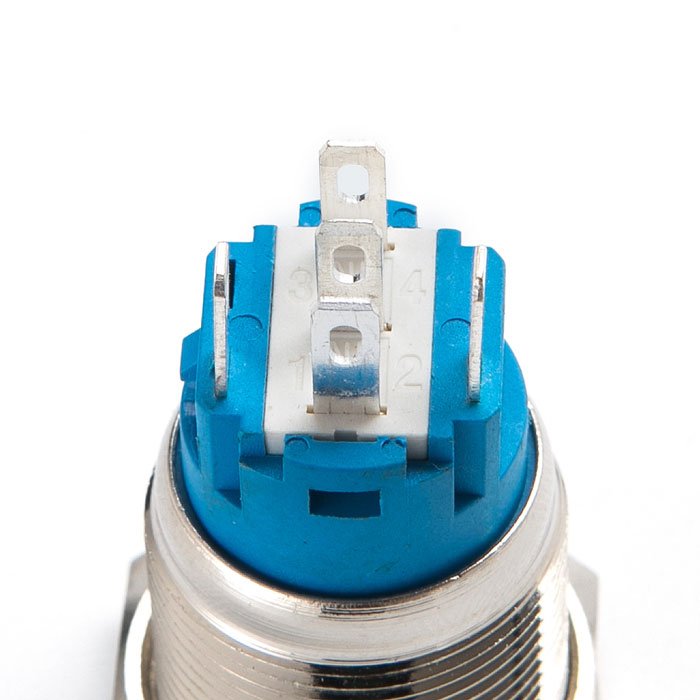

4. Product Details

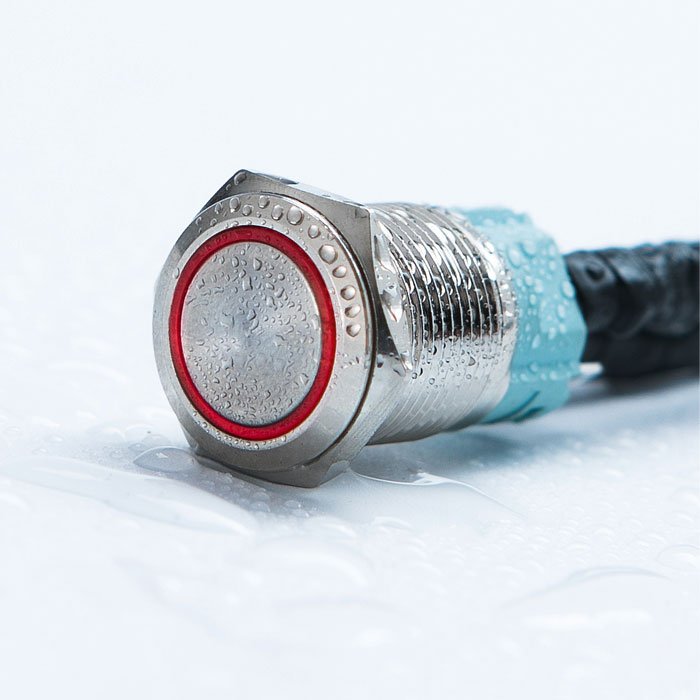

metal push button High-quality metal materials and IP65 waterproof protection; the switch can be used for the modification of cars, motorcycles, ships, computer light switches, industrial control, and access control.
