Description
1. Product Introduction
metal push button illuminated waterproof stainless steel metal 12mm round button switch, high-quality metal material and IP65 waterproof protection, can be used in humid or dusty environments.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications

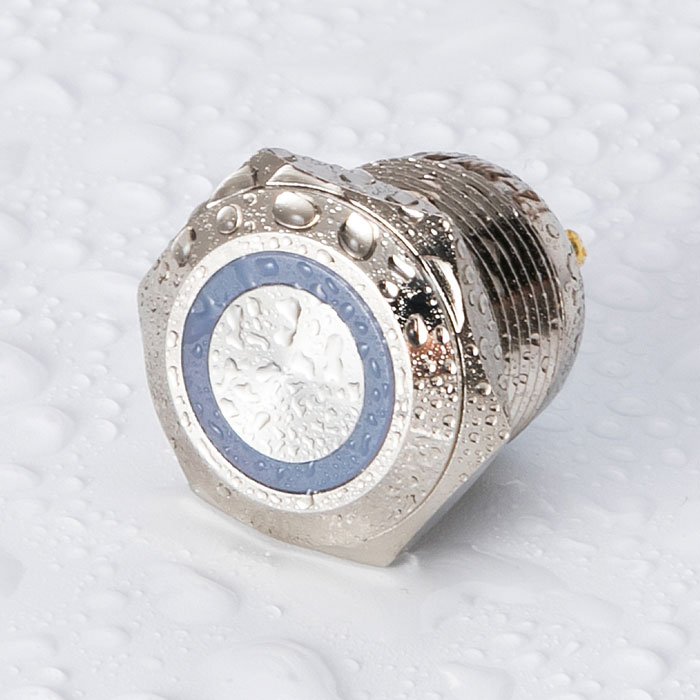

metal push button illuminated Made of stainless steel, strong and durable. Self-locking type, push-open, then push-close. It is fixed by rubber ring and hexagon nut, dustproof and waterproof. Durable and has good electrical conductivity. IP65 waterproof button switch aluminum gold shell, can be used in indoor, humid or dusty environment.
4. Product Details

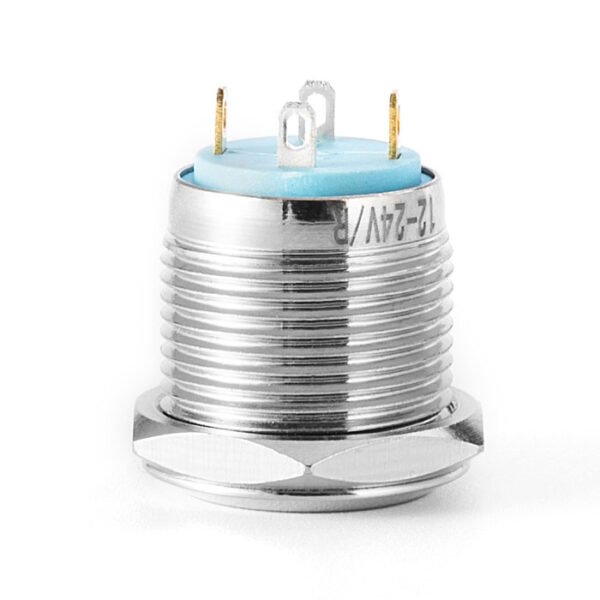

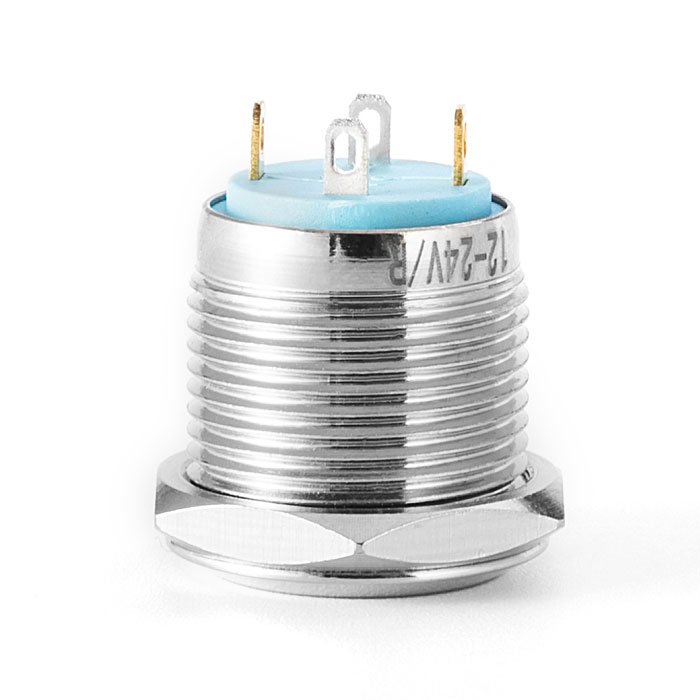

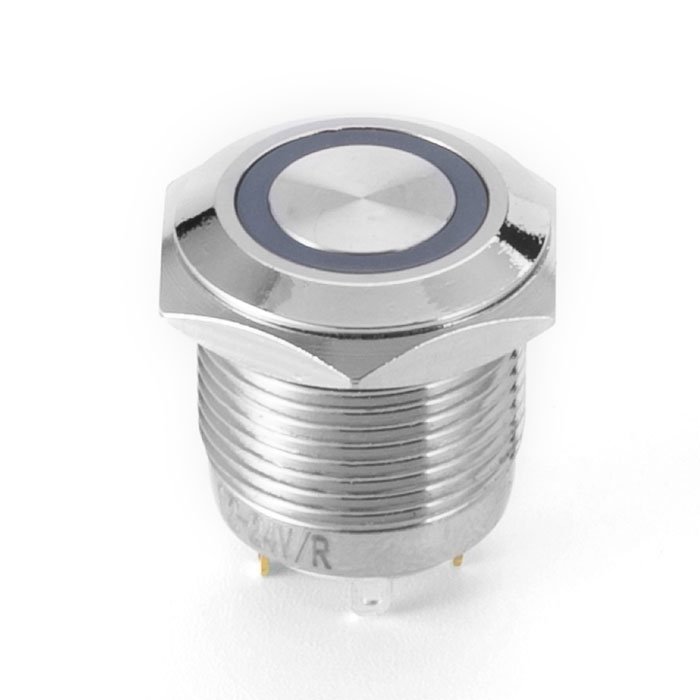

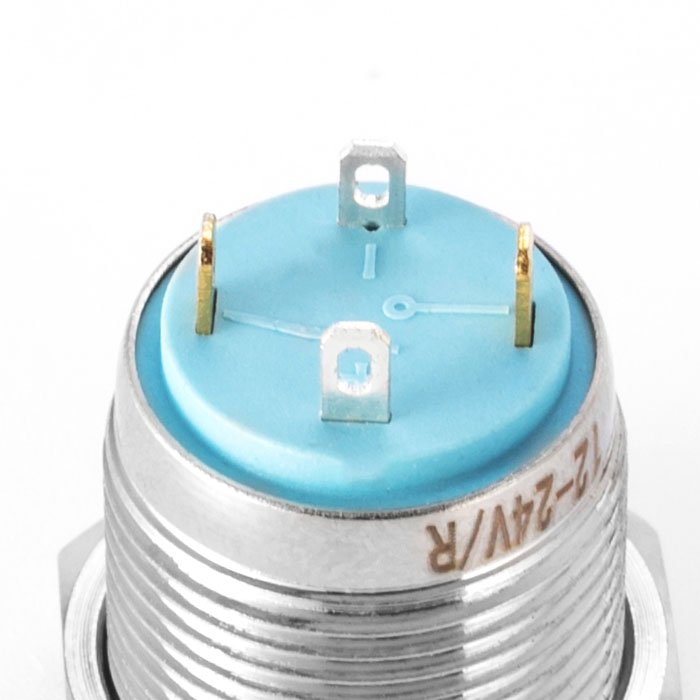

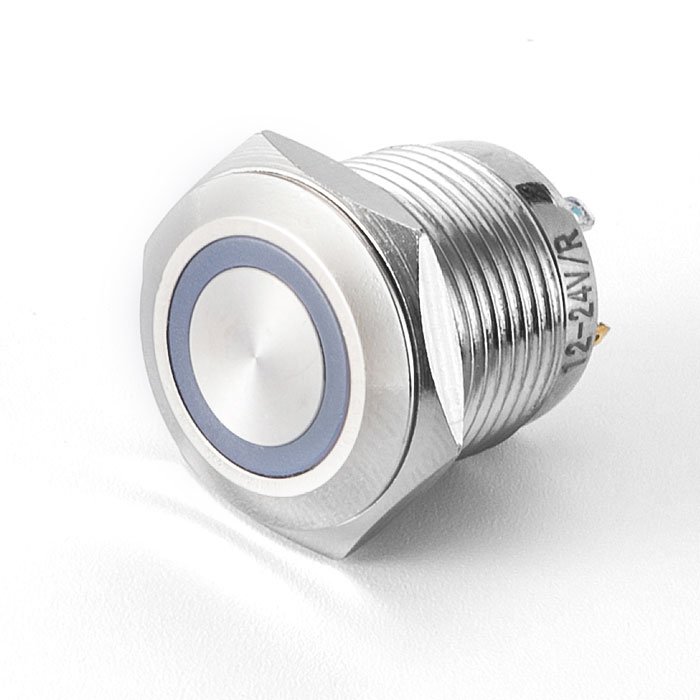

metal push button illuminated 12mm 5A 250V 4 pin stainless steel waterproof led ring illuminated metal push button switch,It is widely used in control circuits, and can be used in ships, automobiles, trucks, households, industrial equipment, medical equipment, etc.
