Description
1. Product Introduction

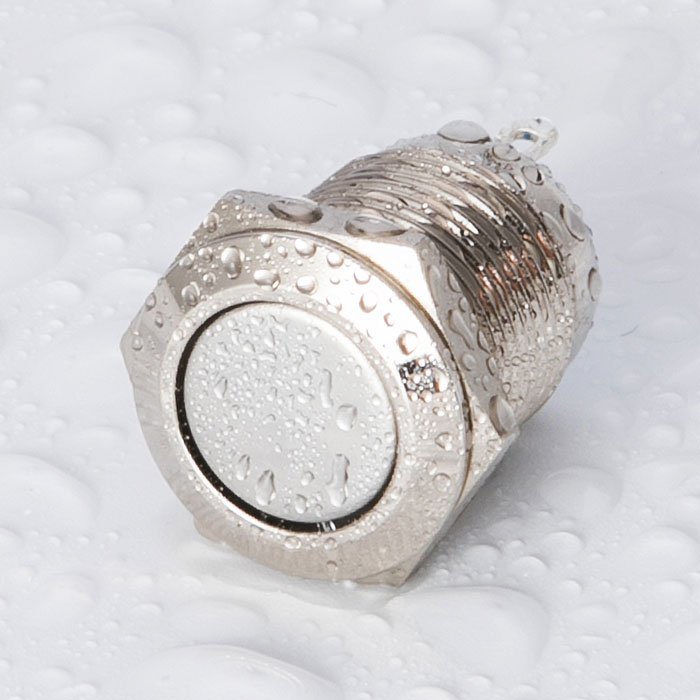

momentary push button switch waterproof stainless steel metal round button switch, high-quality metal material and IP65 waterproof protection, can be used in humid or dusty environments.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications

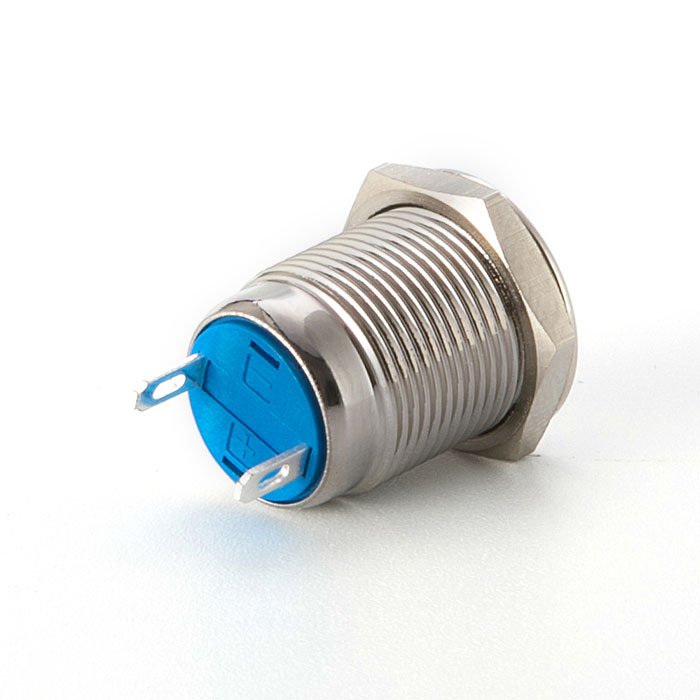

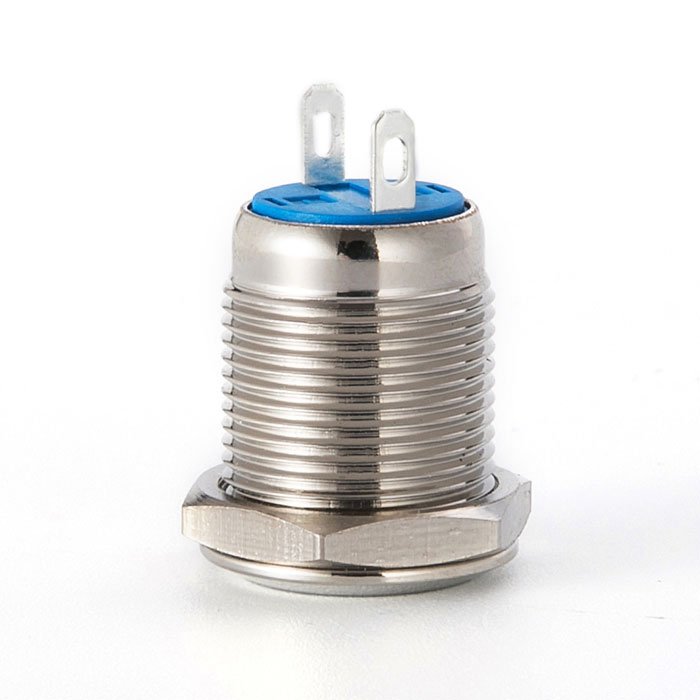

momentary push button switch Lock the button switch: press the button-power on, release your finger-keep the power on, press the button again-power off. Made of zinc alloy, electroplated surface, sturdy and durable. High-end bright appearance and good touch. It is fixed with hexagonal nuts, dustproof, waterproof and moisture-proof, very suitable for outdoor use. 2-pin copper-plated silver terminal with good electrical conductivity. The metal button head is durable and can be pressed for a long time.
4. Product Details

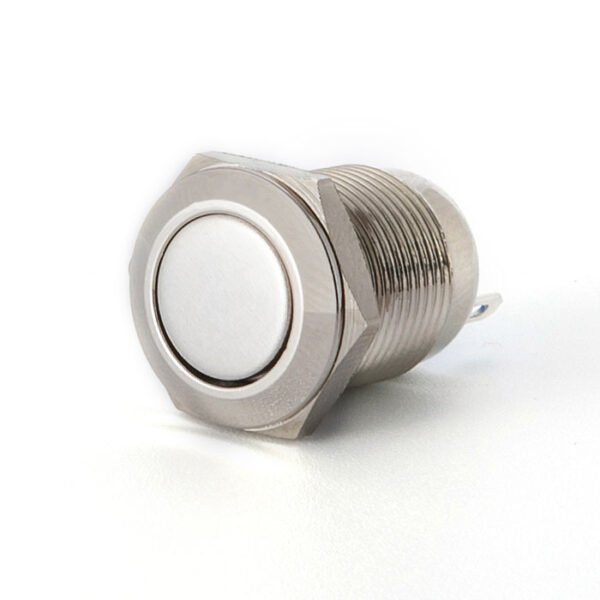

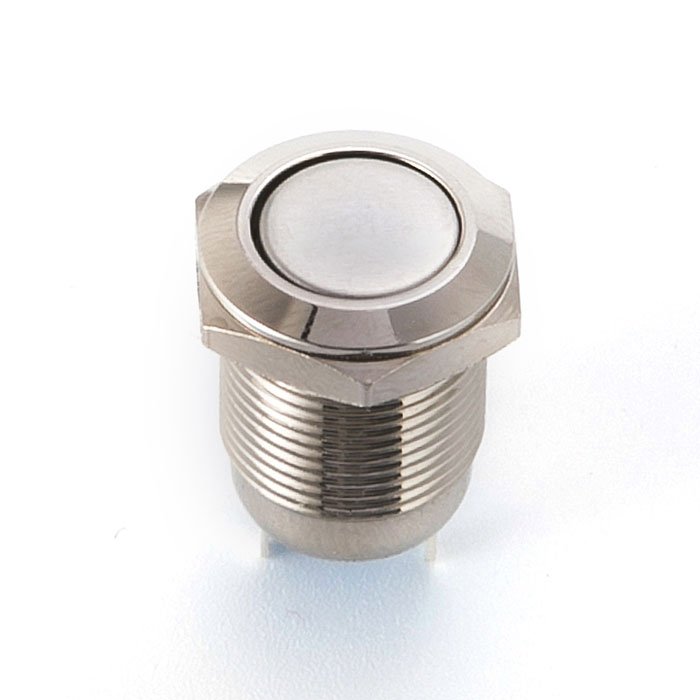

momentary push button switch It is a reliable, low-cost device, available in a variety of colors. Universal instant button stainless steel switch, perfectly switch and turn off various electronic devices, from car audio amplifiers, LED lights in car, home, or PC game applications. Its IP67 waterproof rating makes it suitable for marine and external environments.
