Description
1. Product Introduction
overhead crane remote control The material used in the product is ABS, plastic PA, which is safer. The signal is stable and the penetration is strong. The anti-collision angle design better protects the remote control, with a non-slip safety rope, so that the remote control is not easy to be damaged and has a longer service life.Using the battery voltage warning device, the circuit can be automatically cut off when the voltage is insufficient.
2.Product Parameter (Specification)
| Model Number: | F21-4D |
| IP Level | IP65 |
| Material: | ABS, plastic PA |
| button color: | red white black green |
| Usage: | 2 channel wireless remote control |
| Shell Material | Fiberglass shell |
| Security Code | 32-bit |
| Temperature Range | -35℃ ~ +80℃ |
| Control Distance | Up to 100 meters in the open environment |
| Transmitter power supply | DC 3V (2 alkaline AA batteries can be used for 4 months) |
| Receiver power supply | AC 380V/220V optional, or DC 12V/24V |
3.Product features and applications

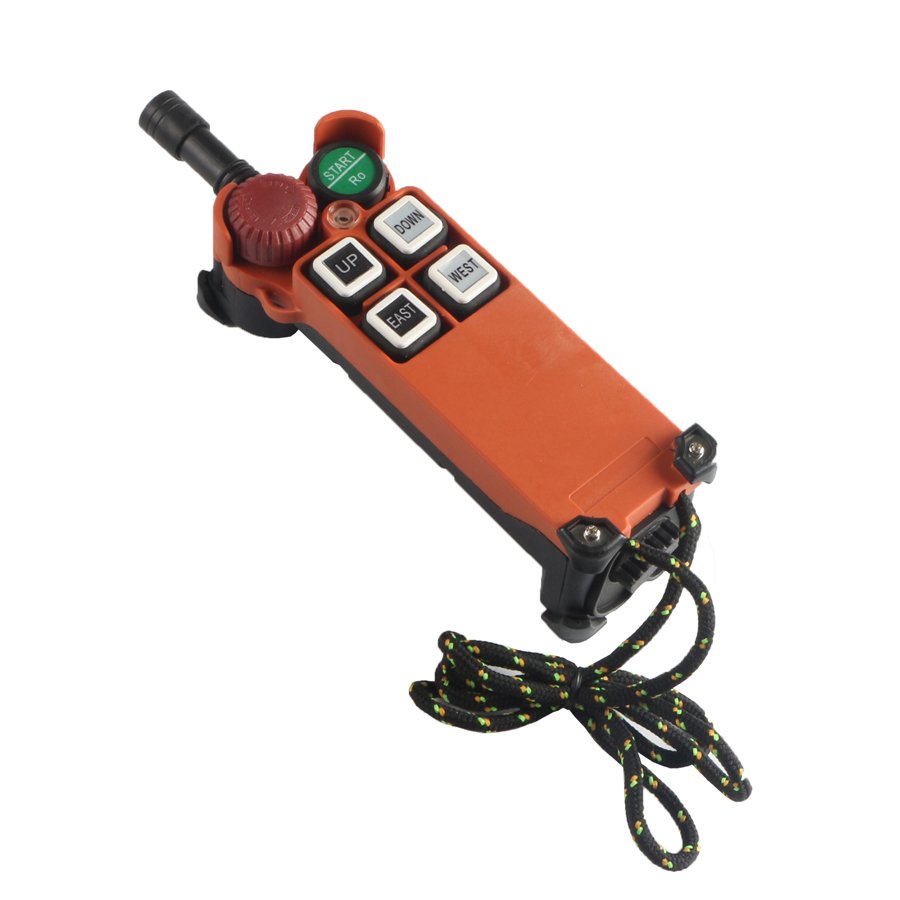

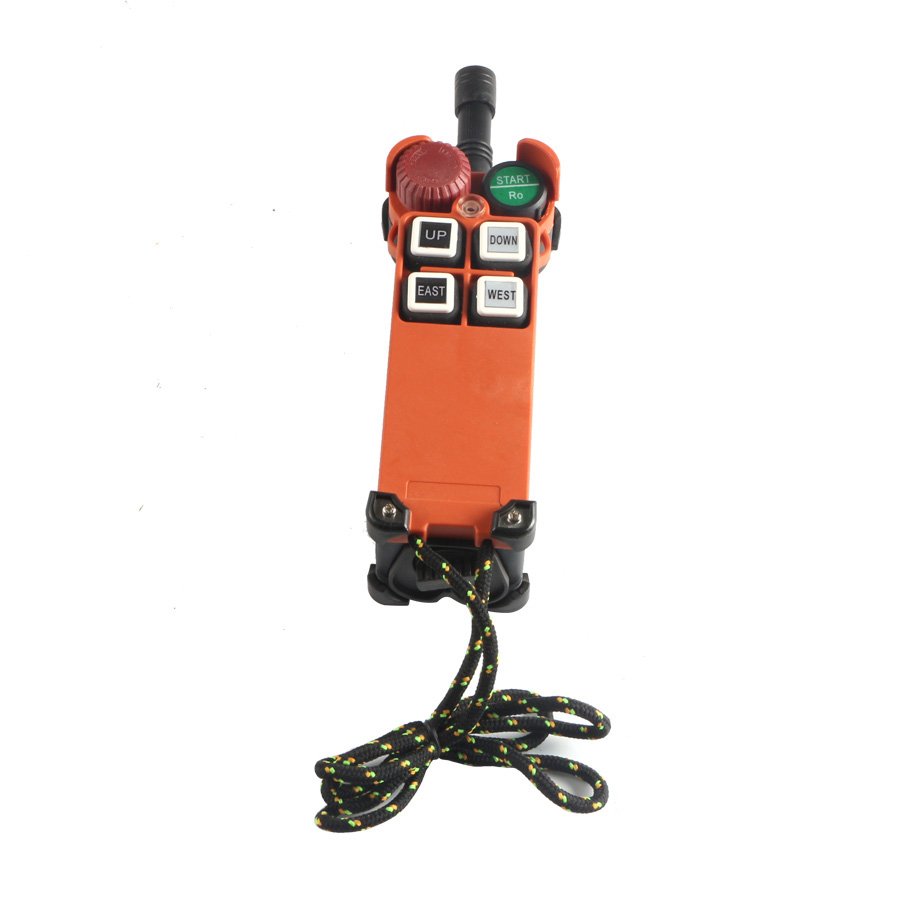

4 double-speed buttons, 1 emergency switch, 1 power button. It is sturdy and durable.
With battery voltage alarm device, cut off the power when the battery is low;
Security key to prevent illegal users from using;
Button functions are programmed through the computer interface;
The operating distance can reach 50-100 meters depending on the model;
overhead crane remote control Safety push button switch Widely used in various industrial equipment.
4. Product Details

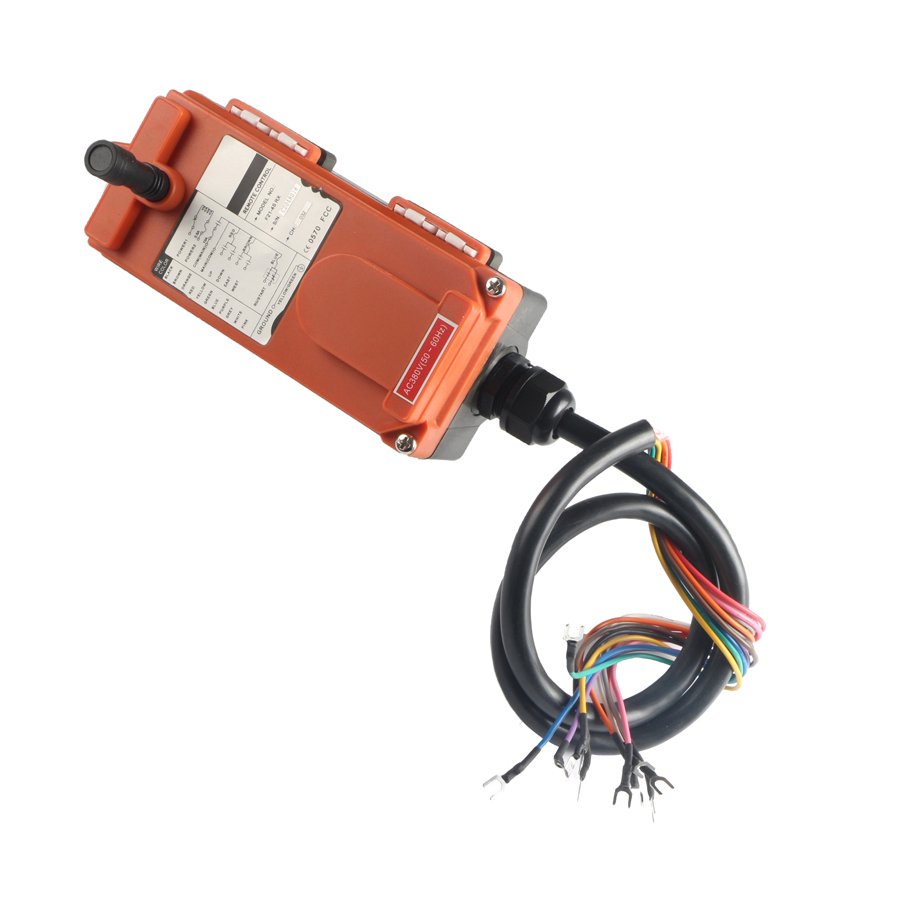

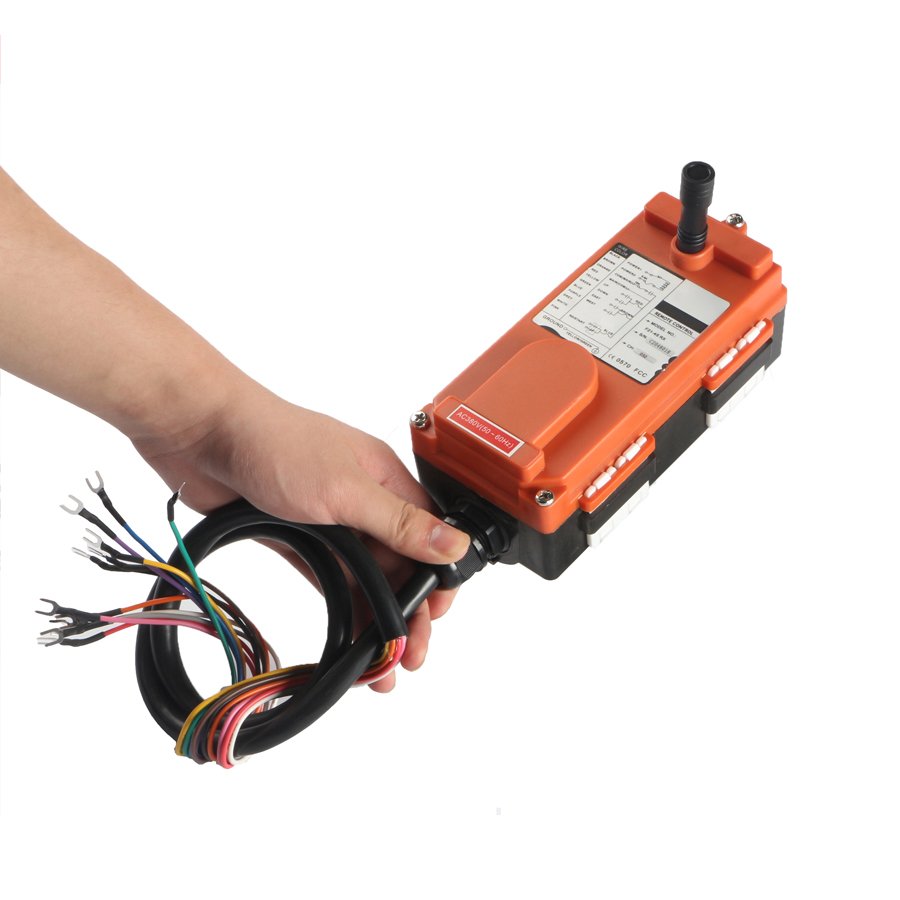

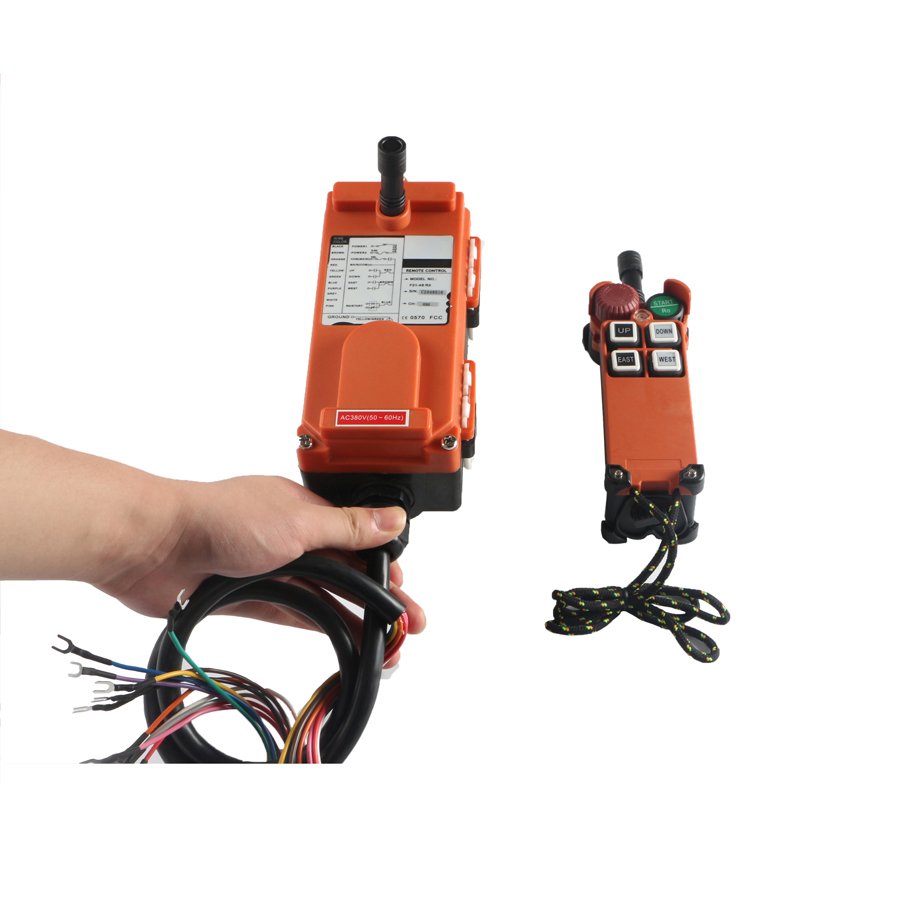

Our products overhead crane remote control , matching receiver,Strong durability and good circuit board performance. Adhere to the stability of product quality and adhere to the strict requirements of product manufacturing.
Colors are red, green, white, black; other colors can be customized by quantity.
It is suitable for bridge crane/bridge crane/chain hoist/monorail/concrete pump truck/mobile crane/tower crane, etc.
