Description
1. Product Introduction
The new Plastic self locking mushroom head button option prevents dust accumulation and provides an attractive appearance, which is widely used in a variety of additional electrical equipment, relays, inside and outside the vehicle or any circuit control
2.Product Parameter (Specification)
| Rated insulation voltage | AC 600V (50/60Hz) | |
| Convectional current | 10A | |
| Insulation resistance | ≥50MΩ | |
| Contact resistance | ≤25MinΩ | |
| Mechanical life | 100*104(Pushbutton) | 50*104(Selector switch/Key switches) |
| Electrical life | 500*104(Pushbutton) | 250*104(Selector switch/Key switches) |
1.Surrounding temperature : -25℃~+55℃;
2.Air relative humidity : ≤85%;
3.It can be normally work under following condition : Vibration frequency is 2-80Hz and acceleration speed is 0.7g/h;
4.Pollution grade III,installation sort is III, protection grade is up to IP65;
5.Altitude : ≤2000m.
3.Product features and applications

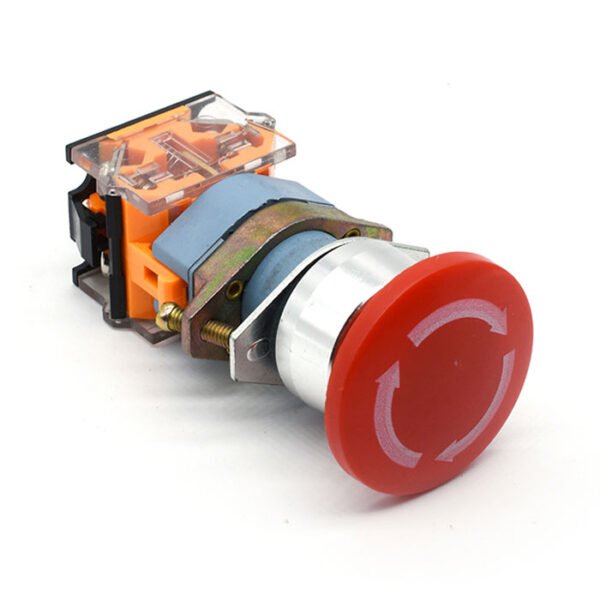

1.This is a Plastic self locking mushroom head button 2.2. High quality plastic, flame retardant and high temperature resistant. 3. It has emergency stop function to ensure safety. 4. The switch has good insulation performance. 5. Quality assurance, stability and reliability, long service life.
4. Product Details

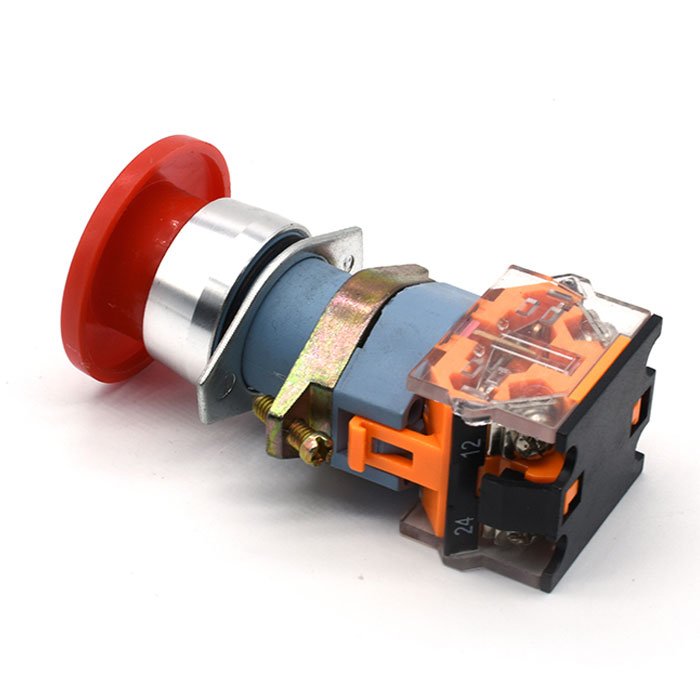

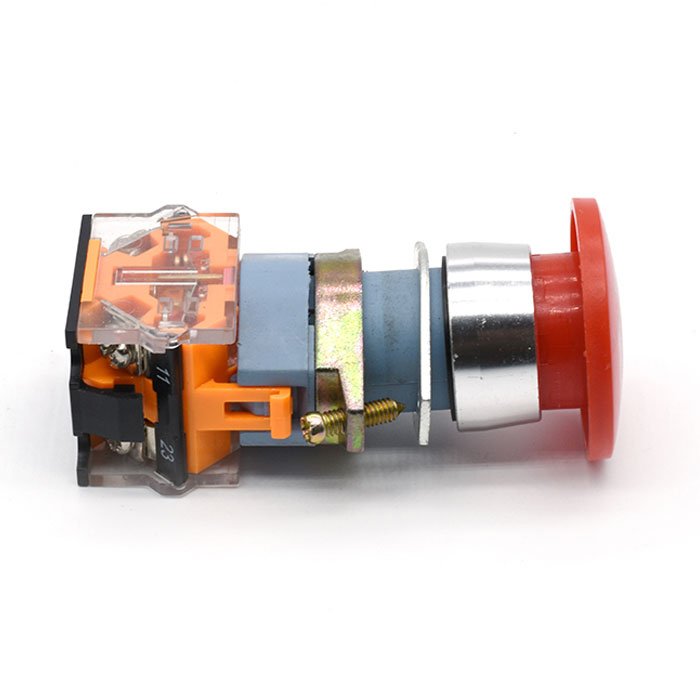

The internal structure of the plastic self locking room head button has a self-cleaning function to effectively prolong its service life. Its red contact represents normally open, that is, press the button to start up, and then press the button to shut down; Its green contact represents normally closed, that is, press the button to turn off the power, and then press the button to turn on the power
