Description
1. Product Introduction

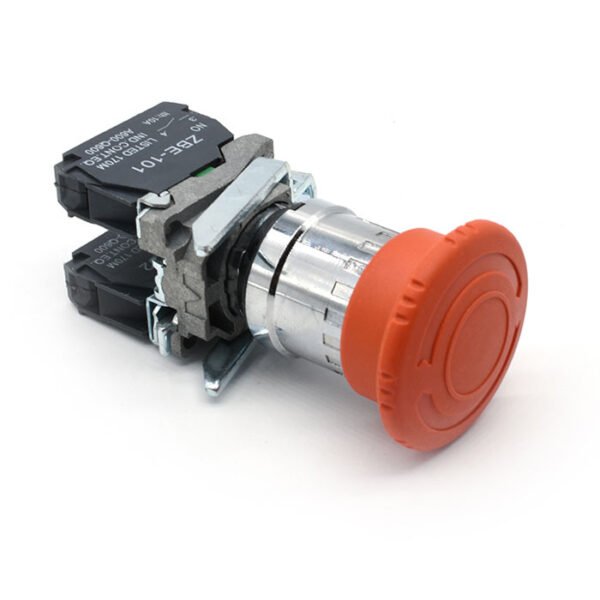

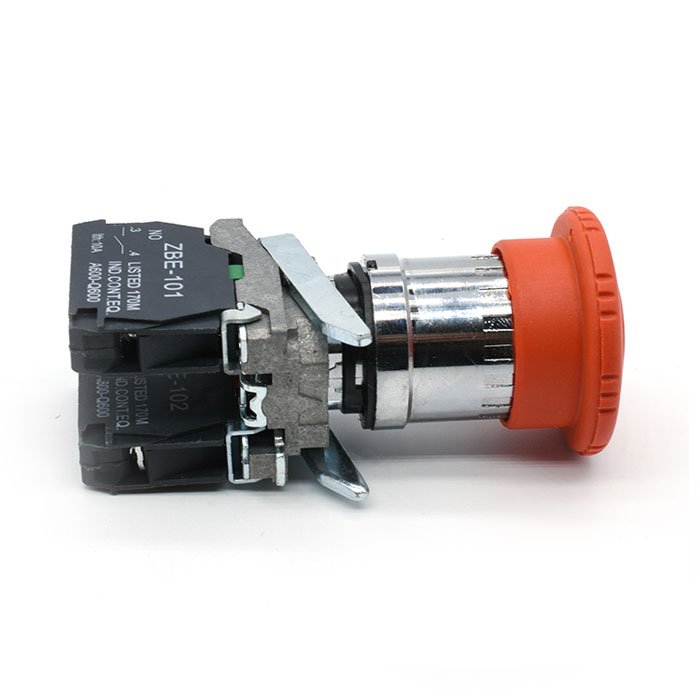

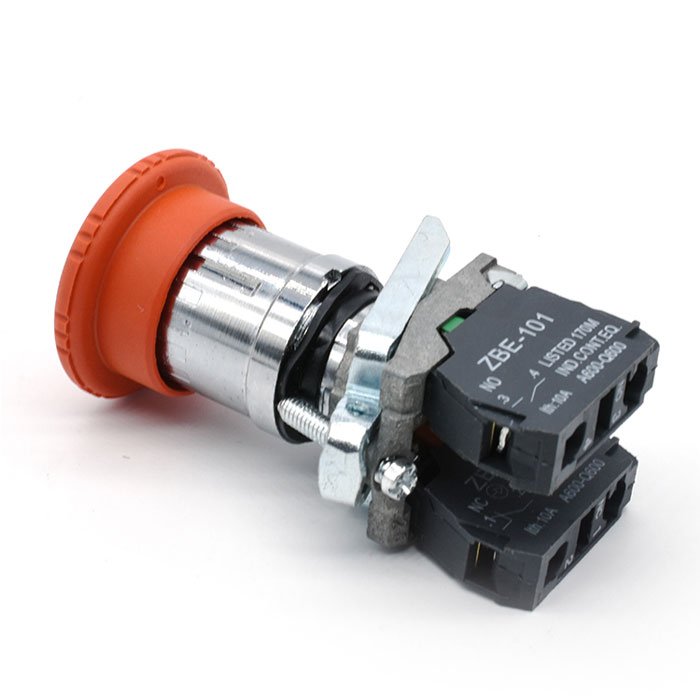

The plastic switch safety emergency stop button is a key system component that protects the operator and the machine in various emergency shutdown situations.
2.Product Parameter (Specification)
| Rated insulation voltage | AC 600V (50/60Hz) | |
| Convectional current | 10A | |
| Insulation resistance | ≥50MΩ | |
| Contact resistance | ≤25MinΩ | |
| Mechanical life | 100*104(Pushbutton) | 50*104(Selector switch/Key switches) |
| Electrical life | 500*104(Pushbutton) | 250*104(Selector switch/Key switches) |
1.Surrounding temperature : -25℃~+55℃;
2.Air relative humidity : ≤85%;
3.It can be normally work under following condition : Vibration frequency is 2-80Hz and acceleration speed is 0.7g/h;
4.Pollution grade III,installation sort is III, protection grade is up to IP65;
5.Altitude : ≤2000m.
3.Product features and applications
Plastic switch safety emergency stop button combines the simplicity, flexibility and rugged structure of the setting. The ingenious locking system consists of a snap on head and a main body, which are tightened with a single screw to ensure simple and safe installation.Suitable for life and Industry
4. Product Details
The space saving design requires a minimum depth behind the panel
Provide PCB, welding and screw terminals; Varies by model
Metal or plastic frame, depending on style and model
All ourPlastic switch safety emergency stop button are very safe, effective, ergonomically designed and attractive. Helping protect your people and ensure productivity is our top priority.
