Description
1. Product Introduction

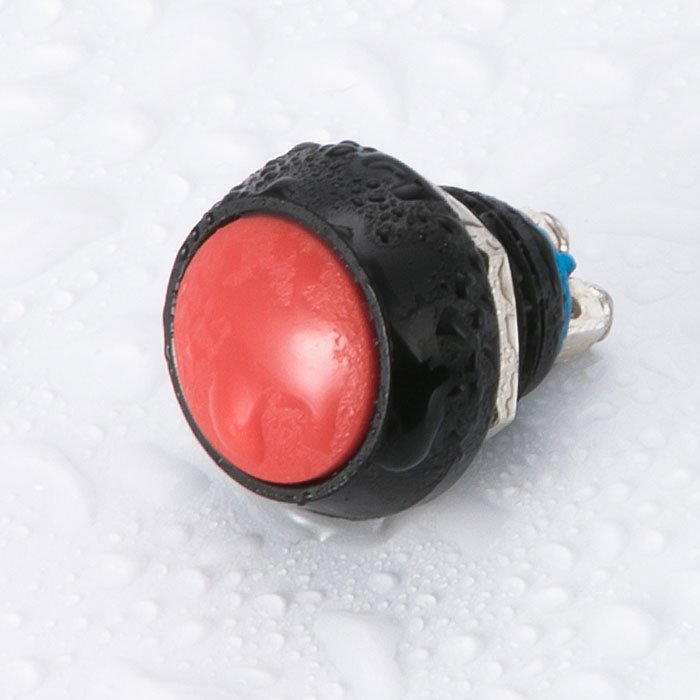

push button metal switch It has a black metal shell and a red button on the head, waterproof stainless steel metal 12mm round button switch, high-quality metal material and IP65 waterproof protection, can be used in humid or dusty environments.
2.Product Parameter (Specification)
| Thremal current | 5A | 2A | 3A |
| Contact type | B:1NO+1NC/2NO+2NC | 1NO | C:1NO B:1NO+1NC/2NO+2NC |
| Contact material | Silver plated gold | Silver plated | Silver plated gold |
| Degree of protection | IP65 | ||
| Maximum voltage | 250VAC/DC | ||
| Minimum applicable load | 5VAC/DC 1mA | ||
| Trminal style | 110” solder/Quick connect | ||
| Operating temperature | -25℃+55℃ | ||
| Operating humidity | 45-85%RH | ||
| Contact resistance | 50MQ max | ||
| Insulation resistance | 100MΩmin(500VDC megger) | ||
| Vibration resistance | 10to 55Hz amplitude 1.2mm P-P | ||
| Degree of protection | >10g | ||
| Electrical life | 100,000 operations minimum (at full rated load) | ||
| Mechanical Life | Maintained:1000,0000perations minimum | ||
| Momentary:1,000,000 operations minimum | |||
| Seleclor/Keylock:250,000 operations minimum | |||
| Dielectrical life | Switch unit:2,000VDC,1min between live/dead part and terminals of different poles | ||
| 1,000VDC,1minute between terminals of the same pole; | |||
| 1,500VDC,1minute between contact and lamp terminals | |||
| lllumination unit:2,000VDC,1min between live part/ground | |||
| Soldering temperature | 20W/5 seconds or 260℃/3 seconds | ||
3.Product features and applications

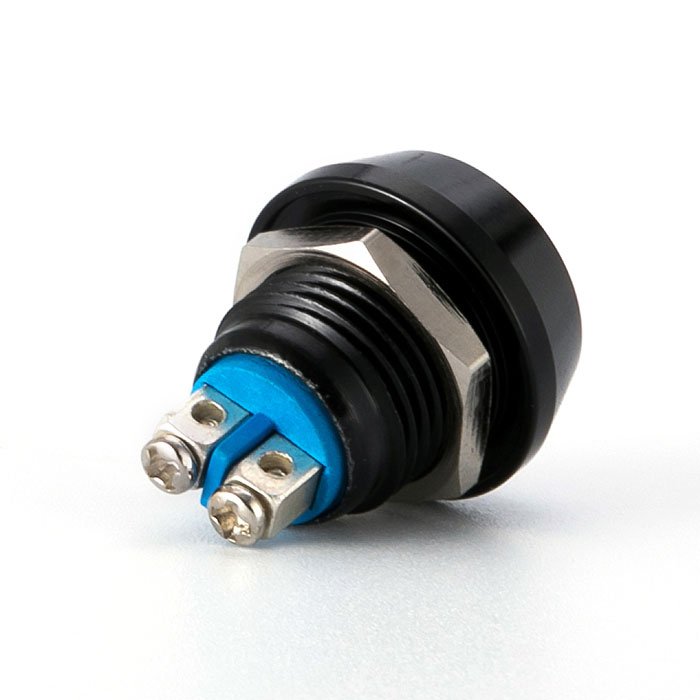

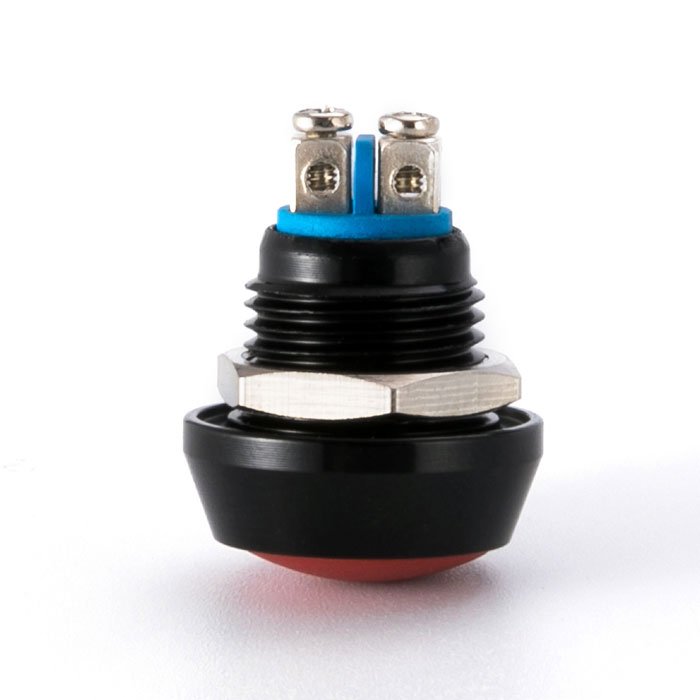

push button metal switch Momentary button switch 12 mm mounting hole size. Screw clamp terminals make installation easier. The metal button head is durable and can be pressed for a long time. Metal button head shape: sturdy and durable, matching of black and red colors, operation type: instantaneous. Body material: stainless steel. Protection level: IP65, switch rating: 2A / 36VDC.
Our products push button metal switch have strict specifications, easy-to-operate interfaces, material protection and optimized service life.
4. Product Details

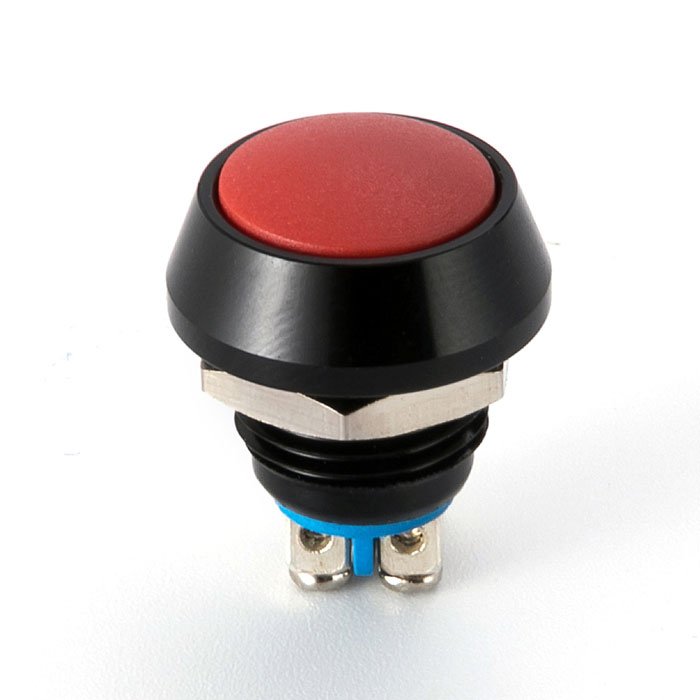

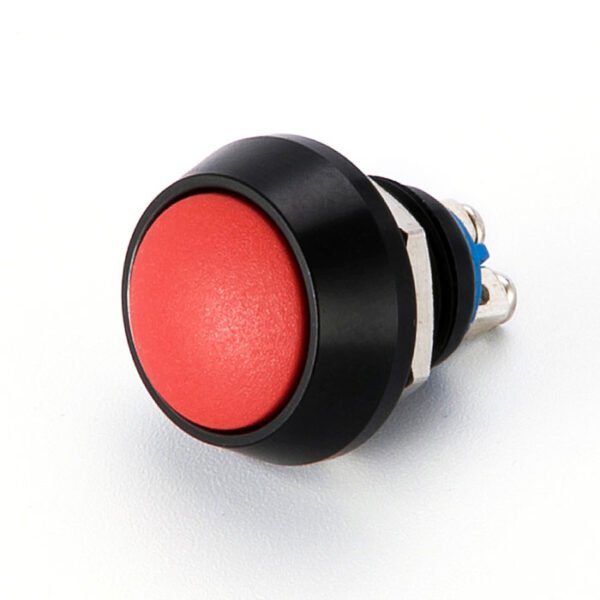

push button metal switch On the front of the button is a round metal actuator, which is easy to press. A 12mm hole can be drilled into any material to hold the hole in place, and there is even a rubber gasket to prevent water from entering the housing.
